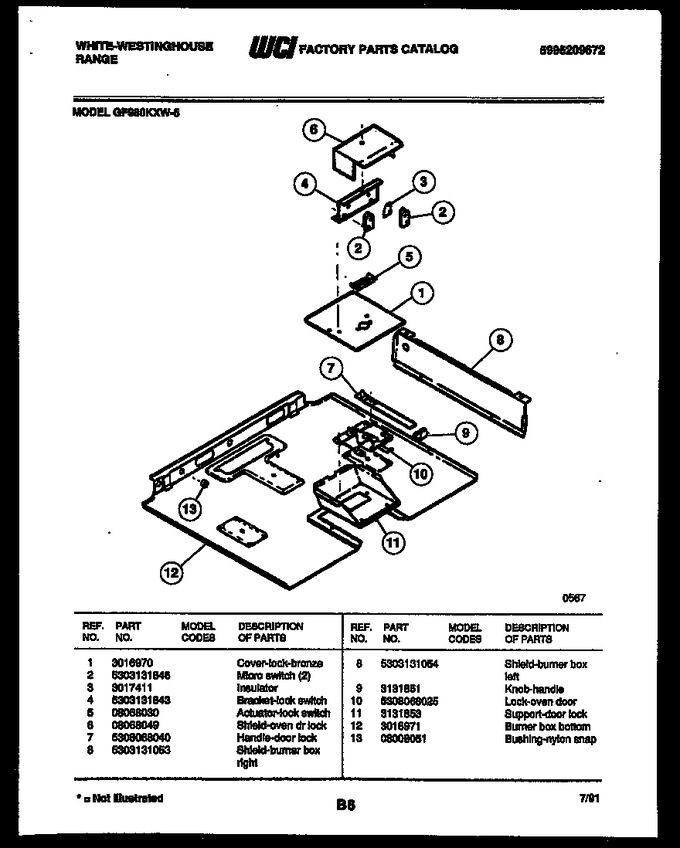

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016970 | Cover Lock Bronze |
|
- | |||||
| 2 | 5303131846 | Micro Switch (2) |
|
- | |||||
| 3 | 3017411 | Insulator |
|
- | |||||
| 4 | 5303131843 | Bracket Lock Switch |
|
- | |||||
| 5 | 08068030 | Actuator, Lock Switch |
|
- | |||||
| 6 | 08068049 | Shield - Oven Dr Lock |
|
- | |||||
| 7 | 5308068040 | Handle Door Lock |
|
- | |||||
| 8 | 5303131053 | Shield-burner Box Right |
|
- | |||||
| 8 | 5303131054 | Shield-burner Box Left |
|
- | |||||
| 9 | 3131851 | Knob Handle |
|
- | |||||
| 10 | 5308068025 | Lock Oven Door |
|
- | |||||
| 11 | 3131853 | Support Door Lock |
|
- | |||||
| 12 | 3016971 | Burner Box-bottom |
|
- | |||||
| 13 | 08008051 | Bushing - Nylon Snap |
|
- |
