| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

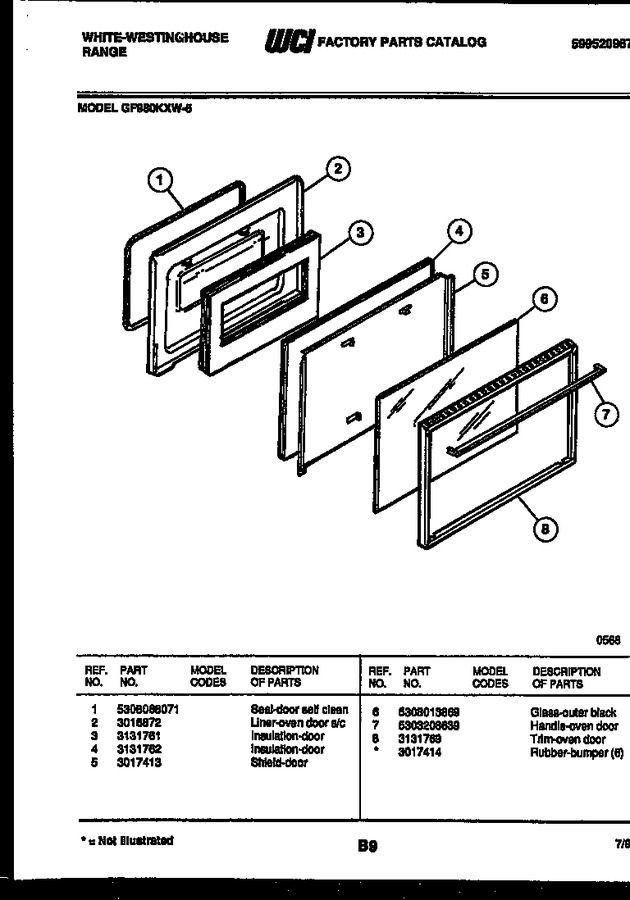

| 1 | 5308068071 | Seal-door Self Clean |
|
- | |||||
| 2 | 3016872 | Liner-oven Door S/c |
|
- | |||||
| 3 | 3131761 | Insulation Door |
|
- | |||||
| 4 | 3131762 | Insulation Door |
|
- | |||||
| 5 | 3017413 | Shield-door |
|
- | |||||
| 6 | 5308013869 | Glass-outer Black |
|
- | |||||
| 7 | 5303208639 | Handle-oven Door |
|
- | |||||
| 8 | 3131769 | Trim Oven Door |
|
- | |||||
| *24252 | 3017414 | Rubber Bumper (6) |
|
- |
