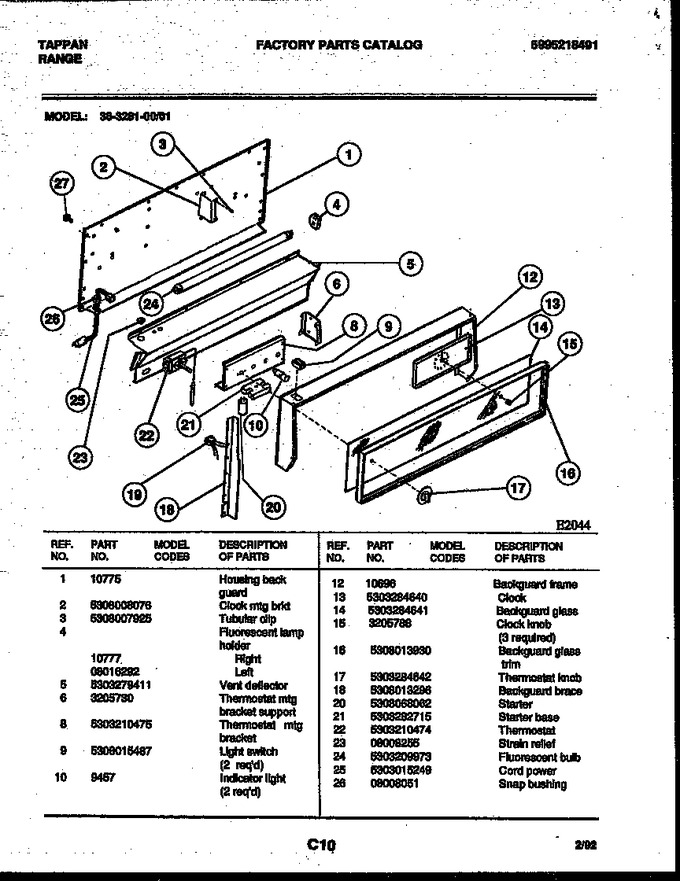

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10775		Housing Backguard		Appelez-nous	-
2	5308008076		Clock Mtg Brkt		Appelez-nous	-
3	5308007925		Tubular Clip		Appelez-nous	-
5	5303279411		Vent Deflector		Appelez-nous	-
6	3205730		Thermostat Mtg Bracket Support		Appelez-nous	-
8	5303210475		Thermostat Mtg Bracket		Appelez-nous	-
9	5303210475		Thermostat Mtg Bracket		Appelez-nous	-
10	5303210475		Thermostat Mtg Bracket		Appelez-nous	-
12	10696		Backguard Frame		Appelez-nous	-
13	5303284640		Clock		Appelez-nous	-
14	5303284641		Backguard Glass		Appelez-nous	-
15	3205788		Clock Knob (3 Required)		Appelez-nous	-
16	5308013930		Backguard Glass Trim		Appelez-nous	-
17	5303284642		Thermostat Knob		Appelez-nous	-
18	5308013296		Backguard Brace		Appelez-nous	-
20	5308068062		Starter				$ 30.46
21	5303282715		Starter Base		Appelez-nous	-
22	5303210474		Thermostat		Appelez-nous	-
23	08008255		Strain - Relief		Appelez-nous	-
24	5303209973		Fluorescent Bulb		Appelez-nous	-
25	5303015249		Cord - Power		Appelez-nous	-
26	08008051		Bushing - Nylon Snap		Appelez-nous	-
4A	10777		Fluorescent Lamp Holder		Appelez-nous	-
4B	08016292		Fluorescent Lamp Holder		Appelez-nous	-
