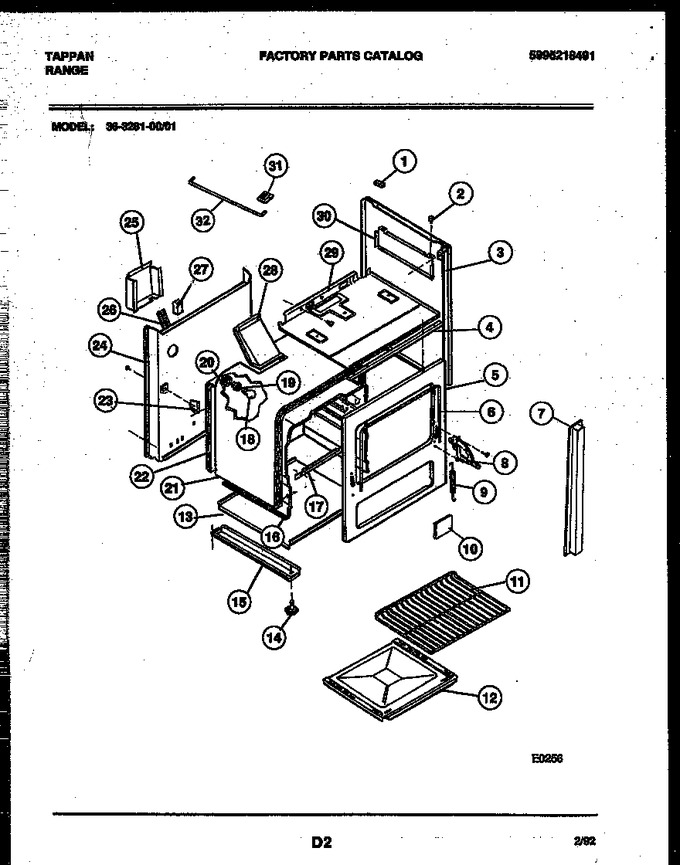

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 3051063 | Grommet |
|
- | |||||
| 3 | 5308014019 | Panel-bodyside, Almond |
|
- | |||||
| 4 | 3205765 | Support-control Pnl |
|
- | |||||
| 5 | 3205578 | Front - Frame |
|
- | |||||
| 6 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 7 | 08013994 | Filler Pnl Bodyside-almond |
|
- | |||||
| 8 | 5303204670 | Oven Door Hinge-rh |
|
- | |||||
| 9 | 5308008028 | Spring-oven Door |
|
- | |||||
| 10 | 08014023 | Support - Base Rail |
|
- | |||||
| 11 | 5303015714 | Rack Oven (2) |
|
- | |||||
| 12 | 3018282 | Bottom Oven Liner |
|
- | |||||
| 13 | 3011645 | Bottom - Main |
|
- | |||||
| 14 | 318175510 | Leg Leveller (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 15 | 5303210255 | Base Rail (right) |
|
- | |||||
| 16 | 3018709 | Liner-side Rh |
|
- | |||||
| 17 | 3131038 | Support-oven Btm |
|
- | |||||
| 18 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 19 | 316116400 | Recetacle Ov Lt (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 20 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 21 | 3017171 | Insulation - Wrap |
|
- | |||||
| 22 | 3017172 | Insulation - Back |
|
- | |||||
| 23 | 3051096 | Support,oven Rear |
|
- | |||||
| 24 | 3205762 | Main Back |
|
- | |||||
| 25 | 3018340 | Cover-spark Module |
|
- | |||||
| 26 | 3131046 | Channel - Wire |
|
- | |||||
| 27 | 5303209931 | Spark Module |
|
- | |||||
| 28 | 3017173 | Vent Box |
|
- | |||||
| 29 | 5303210470 | Burner Box Bottom |
|
- | |||||
| 30 | 5303131053 | Shield-burner Box Rh |
|
- | |||||
| 31 | 6743 | Bracket Support Rod |
|
- | |||||
| 32 | 3051554 | Rod Main Top |
|
- | |||||
| *65179 | 3131791 | Clip,bodyside |
|
$ 19.01 | |||||
| *65180 | 3018339 | Reflector Plate |
|
- | |||||
| *65180 | 19100200024 | Diagram-wiring (not For Purchase) |
|
- | |||||
| *65180 | 3934059 | Anti-tip Kit |
|
- | |||||
| *65180 | 5303131832 | Ballast |
|
- | |||||
| 15A | 5303210256 | Base Rail (left) |
|
- | |||||
| 16A | 3018710 | Liner-side Lh |
|
- | |||||
| 16B | 3018713 | Liner-top |
|
- | |||||
| 16C | 3018712 | Liner-back |
|
- | |||||
| 30A | 5303131054 | Shield-burner Box Lh |
|
- | |||||
| 8A | 5303204672 | Oven Door Hinge-lh |
|
- |
