02 - Backguard
03 - Cooktop Parts

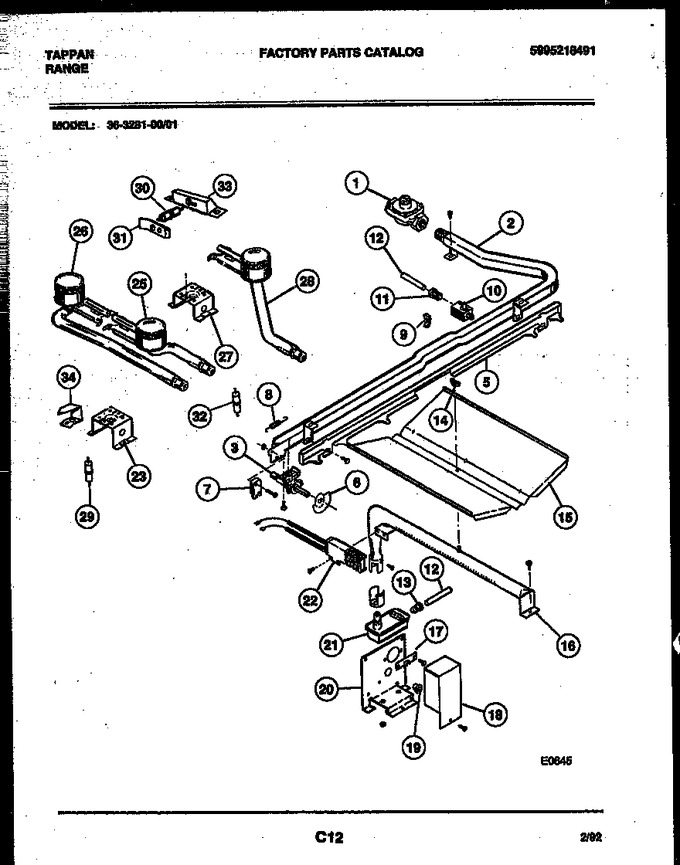

04 - Burner, Manifold And Gas Control
05 - Door Parts
06 - Broiler Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007974 | Pressure Regulator |
|
$ 309.02 | |||||
| 2 | 10867 | Manifold 36`` |
|
- | |||||
| 3 | 3205761 | Top Burner Valve |
|
- | |||||
| 5 | 10806 | Slide Bar |
|
- | |||||
| 6 | 5303131859 | Cam Top Burner |
|
- | |||||
| 7 | 5303131094 | Switch - Micro |
|
- | |||||
| 8 | 5303131096 | Spring - Slide Bar |
|
- | |||||
| 9 | 5303284616 | Clip - Capillary |
|
$ 9.86 | |||||
| 10 | 5303131099 | Valve-shut Off |
|
- | |||||
| 11 | 5303131064 | Lock Nut |
|
- | |||||
| 12 | 5303009495 | Tube-oven Feed |
|
- | |||||
| 13 | 5308007983 | Lock Nut |
|
- | |||||
| 14 | 08007979 | Wing Nut |
|
- | |||||
| 15 | 3203676 | Baffle,oven Burner |
|
- | |||||
| 16 | 5303202752 | Burner-oven |
|
$ 26.83 | |||||
| 17 | 5308007985 | Terminal Board |
|
- | |||||
| 18 | 3131088 | Cover - Oven Valve |
|
- | |||||
| 19 | 08008051 | Bushing - Nylon Snap |
|
- | |||||
| 20 | 3131069 | Support - Oven Valve |
|
- | |||||
| 21 | 5308009419 | Valve - Oven Safety |
|
$ 232.67 | |||||
| 22 | 12400035 | Ignitor - Oven (Replaces: 5308009420) |
|
Immediately | $ 60.44 | ||||
| 23 | 5303210471 | Support Top Brnr (2) |
|
- | |||||
| 25 | 5303131080 | Burner-top Front |
|
$ 76.13 | |||||
| 26 | 5303131079 | Burner,top ,rear |
|
$ 129.78 | |||||
| 27 | 5303210472 | Support-grid Burner |
|
- | |||||
| 28 | 3205792 | Burner Griddle |
|
- | |||||
| 29 | 3203967 | Top Burner Ignite-left |
|
- | |||||
| 30 | 5303210548 | Griddle Ignitor-jumper |
|
- | |||||
| 31 | 5303281925 | Retainer-ignite |
|
- | |||||
| 32 | 5303210549 | Griddle Ignite |
|
- | |||||
| 33 | 5303281926 | Bracket Ignitor |
|
- | |||||
| 34 | 3016993 | Retainer-ignitor |
|
- |
