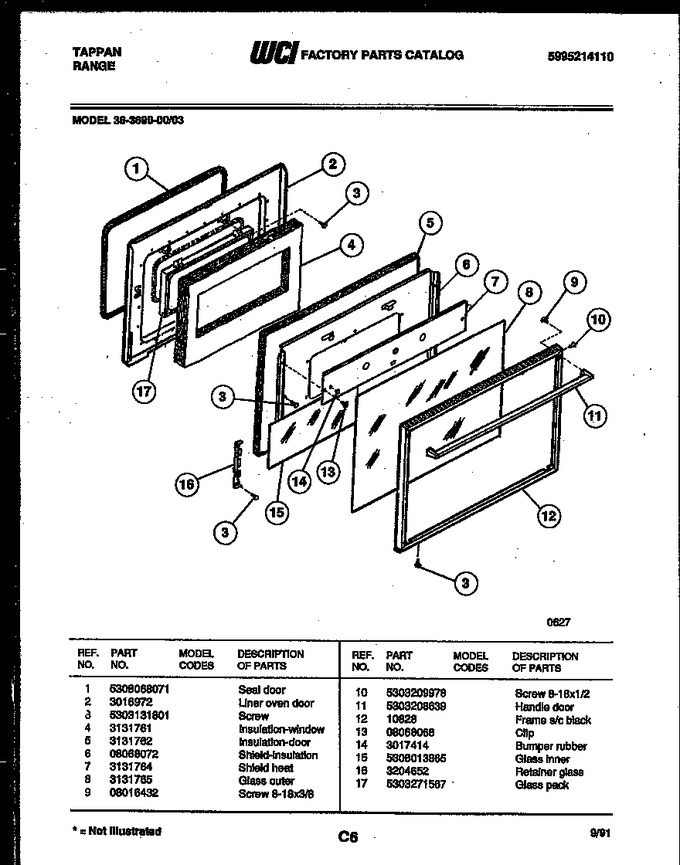

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308068071		Seal Door		Appelez-nous	-
2	3016972		Liner Oven Door		Appelez-nous	-
3	5303131801		Screw		Appelez-nous	-
4	3131761		Insulation-window		Appelez-nous	-
5	3131762		Insulation Door		Appelez-nous	-
6	08068072		Shield-insulation		Appelez-nous	-
7	3131764		Shield-heat		Appelez-nous	-
8	3131765		Glass - Outer		Appelez-nous	-
9	08016432		Screw,8-18 X 3/8		Appelez-nous	-
10	5303209978		Screw 8-18 X 1/2		Appelez-nous	-
11	5303208639		Handle Door		Appelez-nous	-
12	10828		Frame S/c Black		Appelez-nous	-
13	08068068		Clip		Appelez-nous	-
14	3017414		Bumper-rubber		Appelez-nous	-
15	5308013865		Glass Inner		Appelez-nous	-
16	3204652		Retainer Glass		Appelez-nous	-
17	5303271567		Glass Pack		Appelez-nous	-
