02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

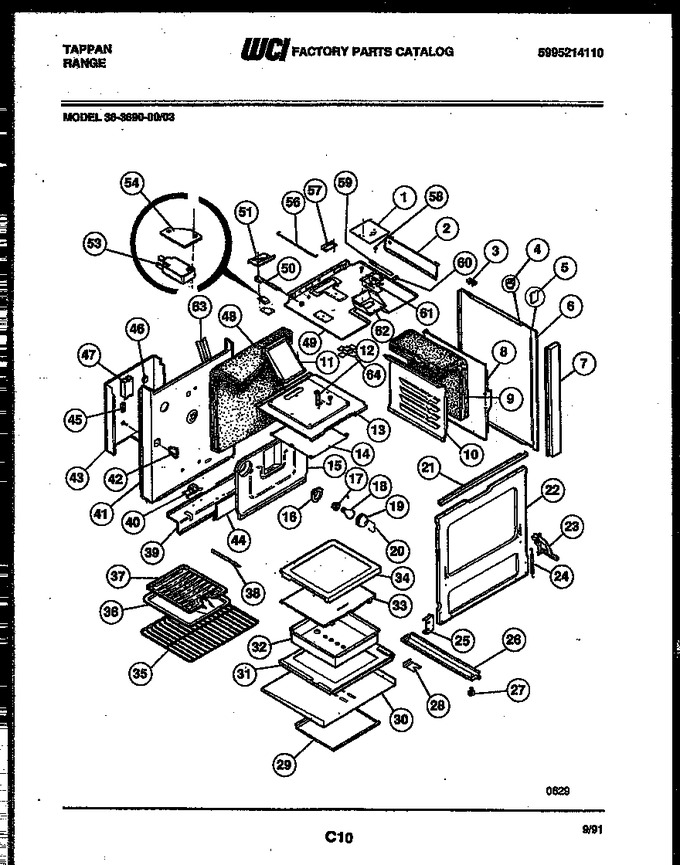

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016970		Cover-door Lock		Appelez-nous	-
2	5303131053		Shield B/b Rh		Appelez-nous	-
3	3205587		Grommet-maintop		Appelez-nous	-
4	3051063		Grommet		Appelez-nous	-
5	3131791		Clip-b/s Corner				$ 19.01
6	5308014019		Bodyside Panel-almond		Appelez-nous	-
6	5303051061		Bodyside Panel-white		Appelez-nous	-
7	10835		Filter Panel B/s		Appelez-nous	-
8	3131794		Shield Heat B/s		Appelez-nous	-
9	3131795		Insulation-oven Wrap		Appelez-nous	-
10	3016533		Liner Side Rh		Appelez-nous	-
11	3016877		Flue Box		Appelez-nous	-
12	3131800		Bracket B/b		Appelez-nous	-
13	3131802		Liner Oven Top		Appelez-nous	-
14	3131803		Baffle Broil Burner		Appelez-nous	-
15	3200915		Liner Oven Back		Appelez-nous	-
16	3051511		Oven Light Cup				$ 60.22
17	316116400		Oven Light Receptacle   (Replaces: 5308011085)			Immediately	$ 56.10
18	40A15		Oven Light Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
19	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
20	5303205904		Oven Light Lens Retainer				$ 7.67
21	3205765		Support-control Panel		Appelez-nous	-
22	3205905		Front Frame		Appelez-nous	-
23	3205895		Oven Door Hinge Rh		Appelez-nous	-
24	3131816		Oven Door Spring		Appelez-nous	-
25	08014023		Support - Base Rail		Appelez-nous	-
26	5303210255		Rail,base ,rh		Appelez-nous	-
26	5303210256		Rail-base, Lh		Appelez-nous	-
27	318175510		Leveling Leg   (Replaces: 5303210257)			Immediately	$ 24.26
28	3934059		Anti-tip Kit		Appelez-nous	-
29	5303210390		Shield Storage Drawer		Appelez-nous	-
30	3131820		Retainer-bottom Insulation		Appelez-nous	-
31	12055		Liner Oven Bottom		Appelez-nous	-
32	5308068046		Pan-oven Burner		Appelez-nous	-
33	3131823		Baffle Oven Bottom		Appelez-nous	-
34	3016975		Plate Oven Bottom		Appelez-nous	-
35	5303015714		Oven Rack (2)		Appelez-nous	-
36	5303016973		Broiler-pan		Appelez-nous	-
37	5303017712		Grid-broiler Pan		Appelez-nous	-
38	3201170		Shield-capillary Bulb		Appelez-nous	-
39	10852		Support Central Valve		Appelez-nous	-
40	5303131832		Ballast		Appelez-nous	-
41	10853		Panel Main Back		Appelez-nous	-
42	3051096		Support,oven Rear		Appelez-nous	-
43	08068038		Cover Bk Wire		Appelez-nous	-
44	08068039		Cover Control Valve		Appelez-nous	-
45	5308008071		Terminal Block		Appelez-nous	-
46	5303131839		Switch-thermo Cut Out		Appelez-nous	-
47	5303209931		Spark Module		Appelez-nous	-
48	3131840		Insulation-top & Back		Appelez-nous	-
49	5303210469		Burner Box Bottom		Appelez-nous	-
50	08068030		Actuator, Lock Switch		Appelez-nous	-
51	5303131843		Bracket Lock Switch		Appelez-nous	-
53	5303131846		Micro Switch (2)		Appelez-nous	-
54	3017411		Insulator Switch (2)		Appelez-nous	-
56	3051554		Support Rod Main Top		Appelez-nous	-
57	6743		Bracket Rod Support		Appelez-nous	-
58	9332		10-24 X 1/4 Screw		Appelez-nous	-
59	5308068040		Handle Door Lock		Appelez-nous	-
60	3131851		Knob Latch Handle		Appelez-nous	-
61	5308068025		Oven Door Lock		Appelez-nous	-
62	3131853		Support Door Lock		Appelez-nous	-
63	3131046		Channel - Wire		Appelez-nous	-
64	08068049		Shield Door Lock		Appelez-nous	-
*60216	19100200021		Diagram-wiring-(not For Purchase)		Appelez-nous	-
10A	3016534		Liner Side Lh		Appelez-nous	-
23A	3205894		Oven Door Hinge Lh				$ 55.91
2A	5303131054		Shield B/b Lh		Appelez-nous	-
