02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Drawer Parts

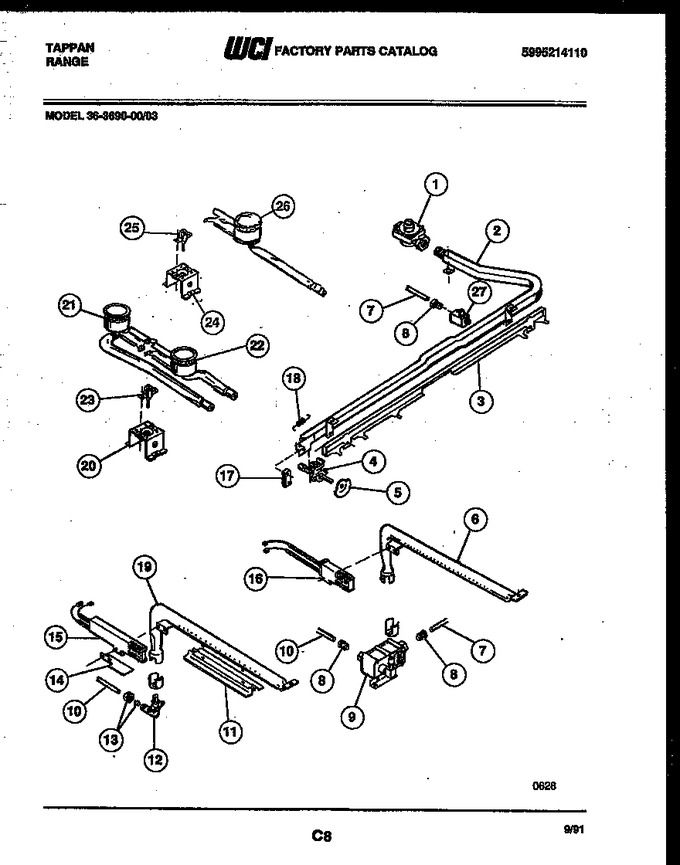

06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007974 | Pressure Regulator |
|
$ 309.02 | |||||
| 2 | 10867 | Manifold Pipe |
|
- | |||||
| 3 | 10806 | Bar Slide |
|
- | |||||
| 4 | 3205761 | Top Burner Valves (5) |
|
- | |||||
| 5 | 5303131859 | Cam Top Burner |
|
- | |||||
| 6 | 5303210389 | Oven Bake Burner |
|
- | |||||
| 7 | 08068028 | Tube - Oven Feed |
|
- | |||||
| 8 | 08011469 | Loxit Nut |
|
- | |||||
| 9 | 5303017415 | Safety Valve |
|
- | |||||
| 10 | 3131866 | Broil Feed Tube |
|
- | |||||
| 11 | 5308011508 | Burner Baffle |
|
- | |||||
| 12 | 5308011470 | Pin-elbow Mixer |
|
- | |||||
| 13 | 3131072 | Nut & Sleeve |
|
- | |||||
| 14 | 3131871 | Shield Oven Ignitor |
|
$ 7.93 | |||||
| 15 | 5303016211 | Ignitor Broil |
|
- | |||||
| 16 | 12400035 | Ignitor Bake (Replaces: 5308009420) |
|
Immediately | $ 60.44 | ||||
| 17 | 5303131094 | Micro Switch |
|
- | |||||
| 18 | 5303131096 | Spring - Slide Bar |
|
- | |||||
| 19 | 5303210389 | Broil Burner |
|
- | |||||
| 20 | 5303210471 | Top Burner Support |
|
- | |||||
| 21 | 5303131079 | Top Burner-rear |
|
$ 129.78 | |||||
| 22 | 5303131080 | Top Burner-front |
|
$ 76.13 | |||||
| 23 | 3203968 | Ignitor-lh Burner |
|
- | |||||
| 24 | 5303210472 | Griddle Burner Support |
|
- | |||||
| 25 | 5303210549 | Ignitor-griddle |
|
- | |||||
| 26 | 3205792 | Griddle Burner |
|
- | |||||
| 27 | 5303131099 | Shutoff Valve |
|
- | |||||
| *60211 | 5300009126 | Clip |
|
- | |||||
| *60211 | 5308007985 | Terminal Board |
|
- | |||||
| 23A | 5303210548 | Ignitor-rh Burner |
|
- |
