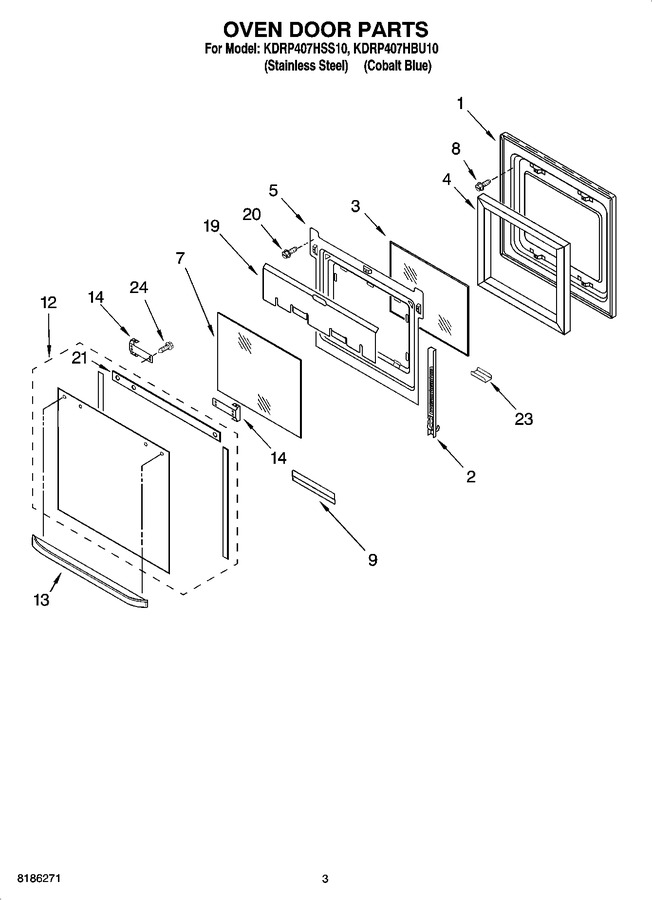

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 317.54
2	WP9760574		Hinge, Door (l.side)   (Replaces: 8300578)			Immediately	$ 60.36
2	WP9760577		Hinge, Door (r.side)   (Replaces: 8300577)			Immediately	$ 99.89
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	8300778		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
8	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 6.47
9	4451668		Retainer, Glass		Appelez-nous	-
12	W10401225		Assy, Door Glass   (Replaces: 4452316)				$ 289.44
13	4455851		Door Handle		Appelez-nous	-
14	WP3400832		Bracket, Handle (screw)   (Replaces: 3400832)			Immediately	$ 6.98
14	4455803		Bracket, Handle (right Hand)				$ 30.70
14	4455804		Bracket, Handle (left Hand)				$ 25.95
19	9757707		Shield, Heat		Appelez-nous	-
20	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
21	4452326		Seal, Door Top		Appelez-nous	-
23	4451432		Retainer, Clip		Appelez-nous	-
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
24	WPW10132940		Screw, 8-32 X .548   (Replaces: 3196184)				$ 8.50

    View Diagram in Separate Window       Print Part List
