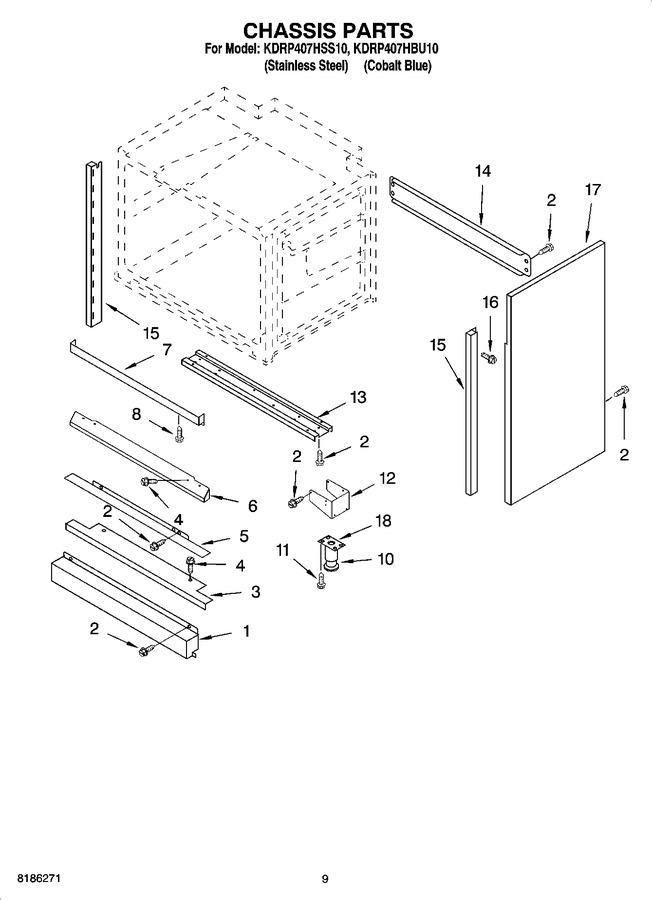

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452802 | Vent, Bottom Lower |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | 4452798 | Backer, Trim Lower |
|
- | |||||
| 4 | WP3400805 | Screw, 8-18 X 3/8 (Replaces: 3400837) |
|
$ 6.47 | |||||
| 5 | 4452800 | Deflector, Center |
|
- | |||||
| 6 | 4452420 | Vent, Bottom Upper |
|
- | |||||
| 7 | WP3400805 | Screw (4) (Replaces: 3400805) |
|
$ 6.47 | |||||
| 7 | 4453323 | Gasket |
|
- | |||||
| 7 | 4452425 | Vent, Center |
|
- | |||||
| 8 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | WP9759117 | Foot (Replaces: 9759117) |
|
$ 127.42 | |||||
| 11 | 3400518 | Screw, 5/16-12 X 5/8 |
|
$ 11.68 | |||||
| 12 | 4455644 | Gusset |
|
- | |||||
| 13 | 4455643 | Support, Channel |
|
- | |||||
| 13 | W11684512 | Screw (8) (Replaces: 3400080) |
|
$ 12.69 | |||||
| 14 | 4452433 | Brace, Rear |
|
- | |||||
| 15 | 4453205 | Trim, Front (left Side) |
|
- | |||||
| 15 | 4452804 | Trim, Front (right Side) |
|
- | |||||
| 16 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 17 | 4452419 | Side Chassis (left Side) |
|
- | |||||
| 17 | 4452418 | Side Chassis (right Side) |
|
- | |||||
| 18 | WP9759118 | Plate, Mounting (Replaces: 9759118) |
|
$ 132.80 | |||||
| N/A | Adhesive |
|
- | ||||||
| 4457147 | Harness, Wire (main) |
|
- | ||||||
| WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 7.11 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| 814381 | Pin Hinge Kit |
|
$ 7.73 | ||||||
| 8284782 | Spud Kit |
|
- | ||||||
| W10138103 | Bracket, Anti-tip (Replaces: 4453141) |
|
$ 167.49 | ||||||
| W10138103 | Bracket, Anti-tip (Replaces: 4453202) |
|
$ 167.49 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 4456549 | Harness, Wire (spark Module) |
|
- | ||||||
| 4453192 | Seal, Ribbon Cable |
|
- | ||||||
| 4453191 | Seal, Access Panel |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 4456628 | Harness, Wire (ignitor 39``) |
|
$ 95.35 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| WP4448444 | Grommet, Rail (Replaces: 4448444) |
|
$ 6.73 | ||||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 | ||||||
| 3191506 | Bushing, Conduit |
|
- | ||||||
| 1129449 | Bushing |
|
- | ||||||
| 8301668 | Conduit |
|
- | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
