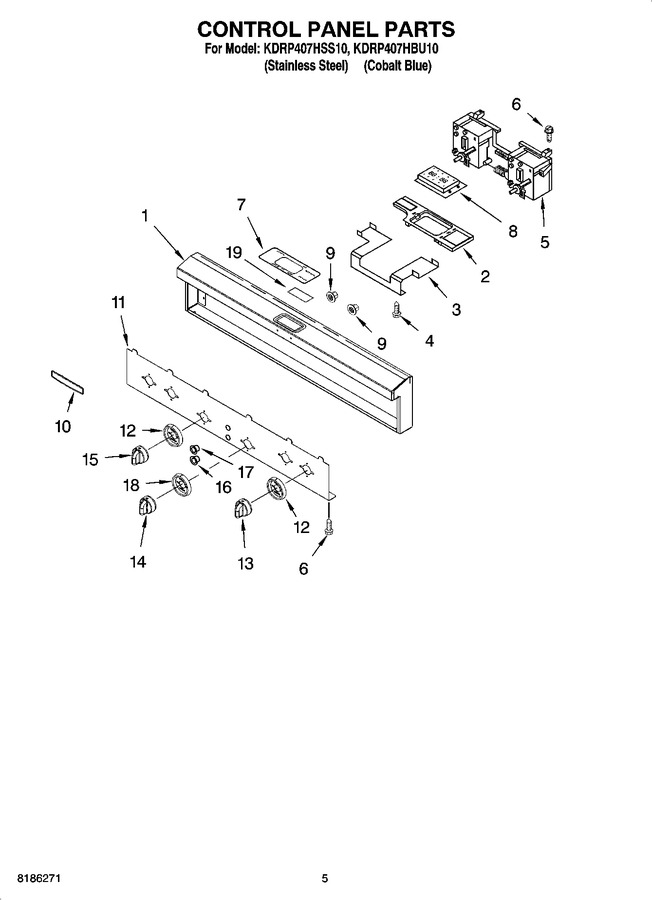

04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4457169		Panel, Control		Appelez-nous	-
2	4453000		Bracket, Display		Appelez-nous	-
3	8300805		Bracket, Display Mounting		Appelez-nous	-
4	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
5	8186394		Control, Zodiac   (Replaces: 4452443)			Immediately	$ 322.90
6	W10276642		Screw, 6-19 X 1   (Replaces: 4449746)				$ 5.49
7	4457155		Escutcheon, Control Panel		Appelez-nous	-
8	WP4452999		Module, Display   (Replaces: 4452999)			Immediately	$ 293.49
9	WP2004333		Palnut   (Replaces: 2004333)				$ 9.63
10	2005292		Nameplate				$ 52.20
11	4455806		Face, Control Panel		Appelez-nous	-
12	4455192		Bezel, Knob		Appelez-nous	-
13	WPW10078400		Knob, Control   (Replaces: 4454970)				$ 6.26
14	4455115		Knob, Temp/time				$ 21.22
15	4455141		Knob, Selector				$ 21.38
16	4452998		Button, Cancel		Appelez-nous	-
17	WP4452997		Button, Enter   (Replaces: 4452997)				$ 127.36
18	4457152		Bezel, T-stat		Appelez-nous	-
19	4455806		Glass, Display		Appelez-nous	-
