SELECT A DIAGRAM

01 - Oven, Literature


02 - Oven Door


03 - Internal Oven


04 - Control Panel


05 - Top Venting


06 - Cooktop


07 - Burner Box And Manifold


08 - Chassis, Optional

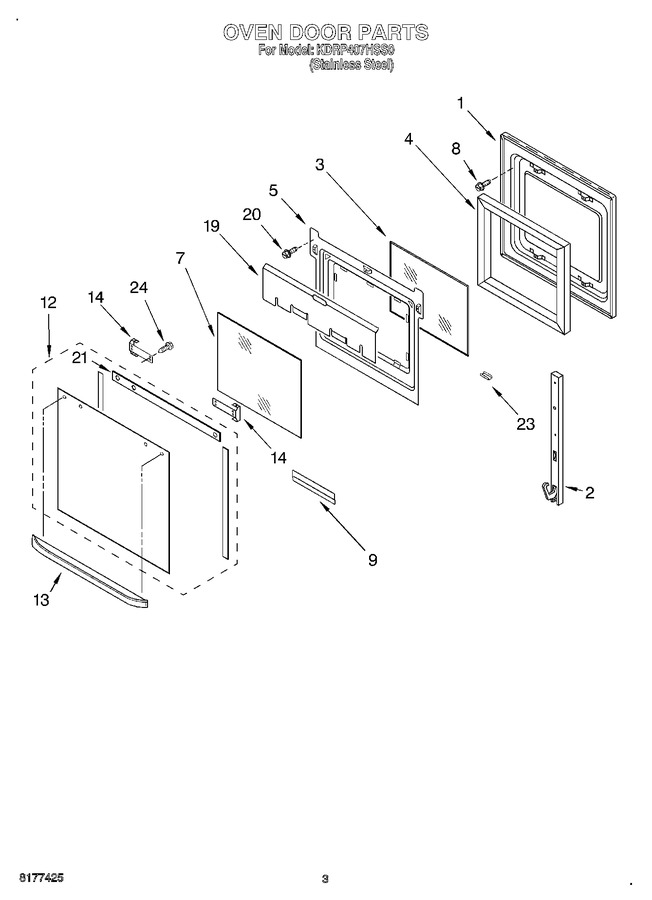

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455526		Hinge, Door   (Replaces: 4452343)			Immediately	$ 71.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	4451671		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
8	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 6.47
9	4451668		Retainer, Glass		Appelez-nous	-
12	W10401225		Assy, Door Glass   (Replaces: 4452316)				$ 289.44
13	4452088		Door Handle		Appelez-nous	-
14	4452488		Bracket, Handle (left Hand)		Appelez-nous	-
14	4452487		Bracket, Handle (right Hand)		Appelez-nous	-
19	4450362		Shield, Heat		Appelez-nous	-
20	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
21	4452326		Seal, Door Top		Appelez-nous	-
23	4451432		Retainer, Clip		Appelez-nous	-
24	WPW10132940		Screw, 8-32 X .548   (Replaces: 3196184)				$ 8.50

    View Diagram in Separate Window       Print Part List
