01 - Oven, Literature
02 - Oven Door
03 - Internal Oven
04 - Control Panel
05 - Top Venting
06 - Cooktop
07 - Burner Box And Manifold
08 - Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

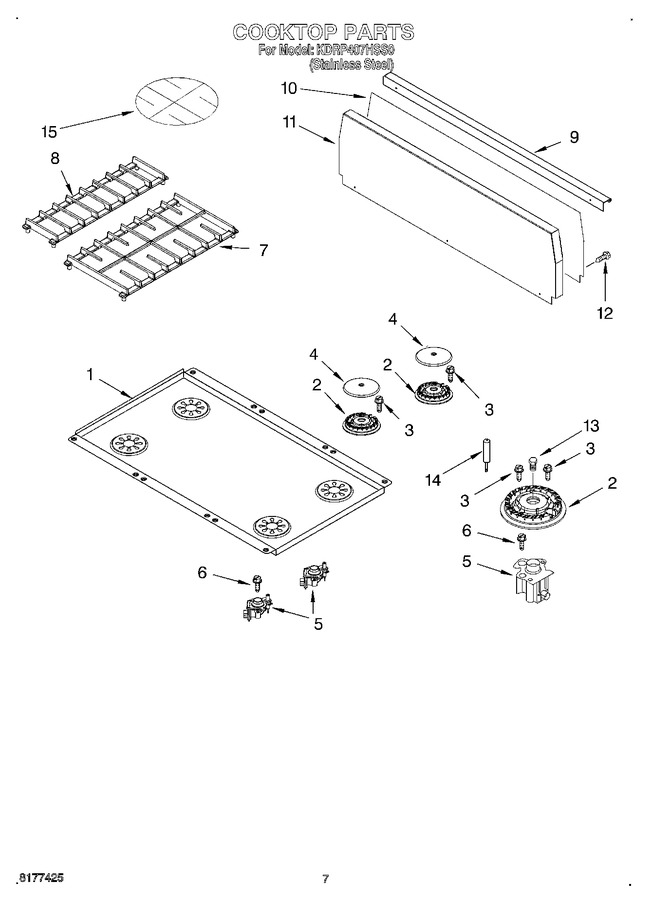

| 1 | 4455032 | Cooktop |
|
- | |||||
| 2 | 9754181 | Burner Head |
|
- | |||||
| 3 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 4 | 4455243 | Cap, Burner |
|
$ 41.37 | |||||
| 5 | 9754188 | Orifice Holder |
|
$ 48.21 | |||||
| 6 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 7 | 4454963 | Grate, Burner |
|
- | |||||
| 8 | 4454964 | Grate, Filler |
|
- | |||||
| 9 | 4454961 | Trim, Island |
|
- | |||||
| 10 | 4455031 | Support, Backsplash |
|
- | |||||
| 11 | 4454959 | Trim, Backsplash |
|
- | |||||
| 12 | WP3400805 | Screw, 8-18 X 3/8 (Replaces: 3400837) |
|
$ 6.47 | |||||
| 13 | 3192525 | Orifice, Burner |
|
$ 38.58 | |||||
| 14 | WP9754215 | Ignitor, Burner (Replaces: 9754215) |
|
Immediately | $ 47.11 | ||||
| 15 | 4455109 | Plate, Simmer |
|
$ 52.31 |
