Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4453188 Panel, Control Appelez-nous -
2 4453000 Bracket, Display Appelez-nous -
3 4453120 Bracket, Display Mounting Appelez-nous -
4 WP3196557 Screw, 8-18 X 3/8   (Replaces: 3196537) In-Stock Immediately $ 7.16

5 8186394 Control, Zodiac   (Replaces: 4452443) In-Stock Immediately $ 322.90

6 4449899 Screw, 6-19 X 1 Appelez-nous -
7 4453199 Escutcheon, Control Panel Appelez-nous -
8 WP4452999 Module, Display   (Replaces: 4452999) In-Stock Immediately $ 293.49

9 WP2004333 Palnut   (Replaces: 2004333) Special Order $ 9.63

10 2005292 Nameplate Special Order $ 52.20

11 4455211 Face, Control Panel Appelez-nous -
12 4455192 Bezel, Knob Appelez-nous -
13 WPW10078400 Knob, Control   (Replaces: 4454970) Special Order $ 6.26

14 4455115 Knob, Temp/time Special Order $ 21.22

15 4455141 Knob, Selector Special Order $ 21.38

16 4452998 Button, Cancel Appelez-nous -
17 WP4452997 Button, Enter   (Replaces: 4452997) Special Order $ 127.36


    View Diagram in Separate Window     Print Icon   Print Part List

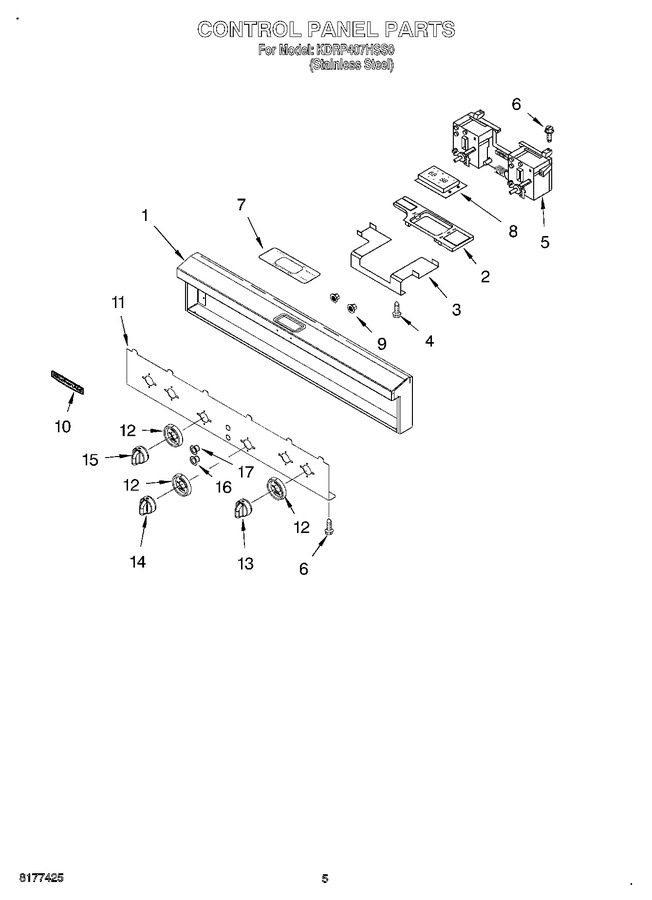

Diagram for KDRP407HSS0
