01 - 38826p Transmission Assy


02 - Agitator/drive Bell/seal Kit/tub & Hub


03 - Agitator/drive Bell/seal Kit/tub & Hub


04 - Cab Top/loading Dr & Ctrl Hood Rear Pan


05 - Drain Hose And Siphon Break


06 - Front Panel, Base And Cabinet


07 - Graphic Panel, Ctrl Mtg Plate And Ctrls


08 - Graphic Panel, Ctrl Mtg Plate And Ctrls


09 - Inlet/fill Hose/mixing Vlv & Mtg Brkt


10 - Loading Door Switch


11 - Mix Vlv/mtr Conn Blks Term & Extractor


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub/cover/press Hose & Ctrwgt


14 - Power Cord And Terminals


15 - Special Tools


16 - Special Tools


17 - Terminals


18 - Weldment & Bearing Assy, Brake & Pulley

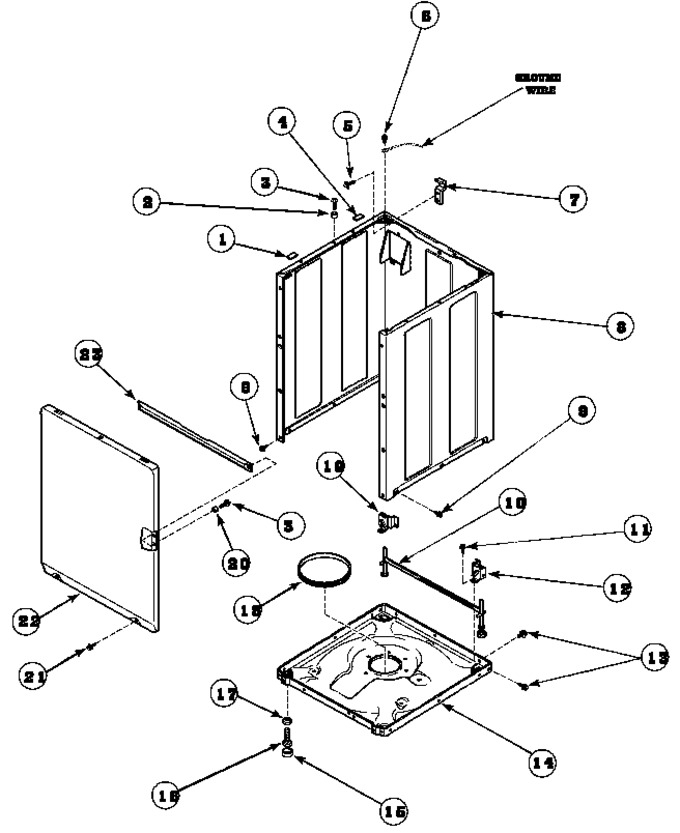

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	36226		Pad, Bumper .25				$ 3.45
5	34499		Screw, No.10b X 1/4 Tap In Hx		Appelez-nous	-
6	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
7	Y27103		Hinge,hold-down Lug		Appelez-nous	-
8	34475P		Cabinet		Appelez-nous	-
9	WP27001200		Screw   (Replaces: 27196)				$ 6.91
10	34443		Assy,leg & Stabilier			Immediately	$ 44.62
11	35148		Screw,1/4-14 X 3/8 Hx Hd				$ 6.95
12	4098G		Bracket,sll-right   (Replaces: 36036)				$ 36.76
13	35148		Screw,1/4-14 X 3/8 Hx Hd				$ 6.95
14	37807		Base		Appelez-nous	-
15	34318		Rubber Foot			Immediately	$ 4.74
16	22003428		Leveling Leg   (Replaces: Y34319)			Immediately	$ 14.41
17	WP210385		Locknut   (Replaces: Y21899)				$ 6.26
18	37937		Friction Ring			Immediately	$ 30.29
19	36037		Bracket,sll-left				$ 77.94
20	28102		Locator,panel		Appelez-nous	-
21	38272		Screw				$ 11.04
22	38238P		Front Panel		Appelez-nous	-
23	Y35097		Brace, Frt Pnl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
