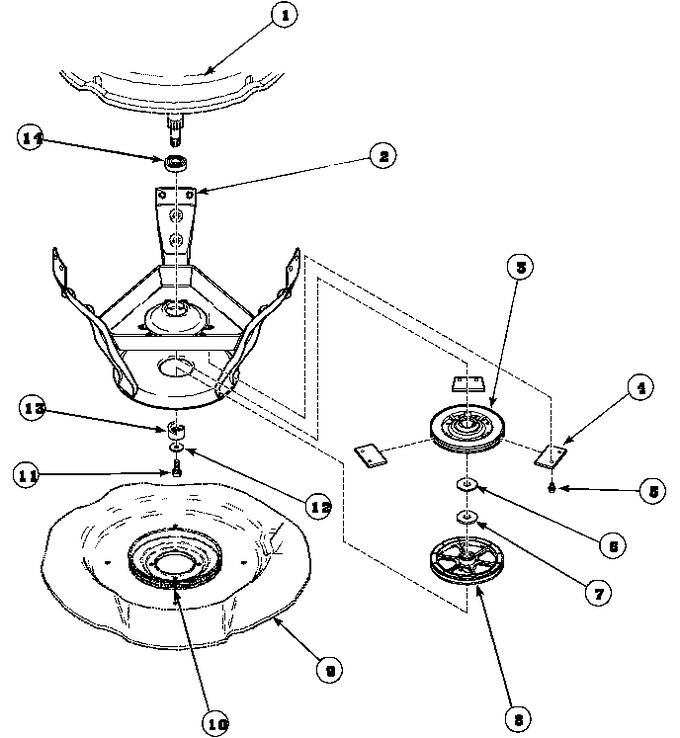

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	37813P		Tub, Outer-tall				$ 497.65
2	39253		Assy, Weld & Bearing			Immediately	$ 344.25
3	205546P		Brake   (Replaces: 38505)			Immediately	$ 59.38
4	735P3		Brake Pad   (Replaces: 637P3)			Immediately	$ 40.33
5	37836		Screw		Appelez-nous	-
6	35535		Washer				$ 6.95
7	27015		Washer			Immediately	$ 6.95
8	Y38007		Pulley Assy		Appelez-nous	-
9	37807		Base		Appelez-nous	-
10	37937		Friction Ring			Immediately	$ 30.29
11	27220		Screw				$ 2.30
12	26509		Washer				$ 6.95
13	Y38008		Helix		Appelez-nous	-
14	28944RP		Bearing   (Replaces: 28944R)			Immediately	$ 34.88

    View Diagram in Separate Window       Print Part List
