SELECT A DIAGRAM

01 - 38826p Transmission Assy


02 - Agitator/drive Bell/seal Kit/tub & Hub


03 - Agitator/drive Bell/seal Kit/tub & Hub


04 - Cab Top/loading Dr & Ctrl Hood Rear Pan


05 - Drain Hose And Siphon Break


06 - Front Panel, Base And Cabinet


07 - Graphic Panel, Ctrl Mtg Plate And Ctrls


08 - Graphic Panel, Ctrl Mtg Plate And Ctrls


09 - Inlet/fill Hose/mixing Vlv & Mtg Brkt


10 - Loading Door Switch


11 - Mix Vlv/mtr Conn Blks Term & Extractor


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub/cover/press Hose & Ctrwgt


14 - Power Cord And Terminals


15 - Special Tools


16 - Special Tools


17 - Terminals


18 - Weldment & Bearing Assy, Brake & Pulley

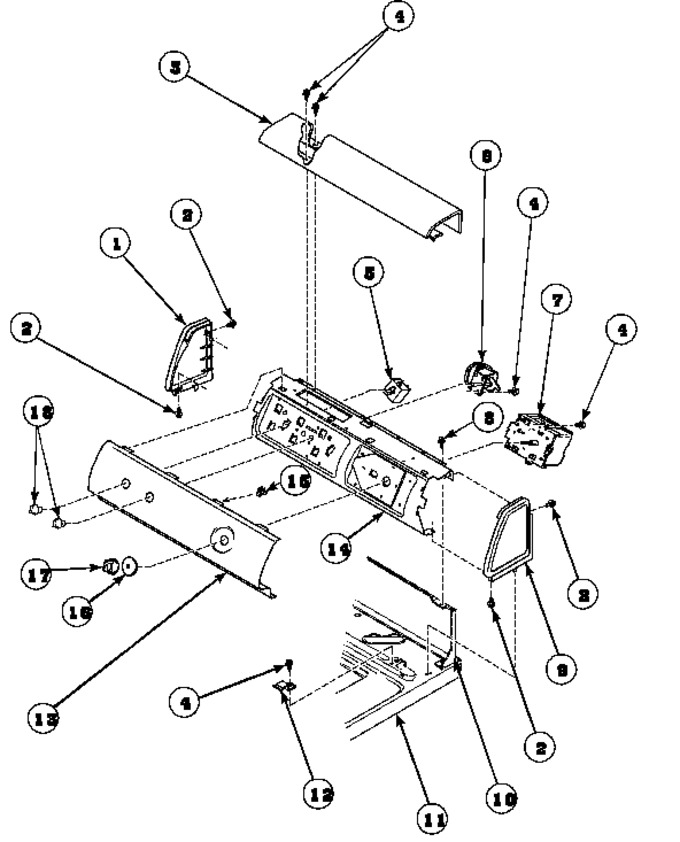

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y504009		End Cap Left		Appelez-nous	-
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
3	38231		Top Cover		Appelez-nous	-
4	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
5	35115		Switch,temperature 3 P				$ 30.67
6	38842		Pressure Switch		Appelez-nous	-
7	37929P		Timer, 115v/60hz 3 Cyc   (Replaces: 37929)				$ 385.86
8	W11233072		Screw,8-18 X 3/8 Phil Pan Hd   (Replaces: 34904)			Immediately	$ 12.62
9	Y504008		End Cap Right		Appelez-nous	-
10	37782		Control Hood Back Panel				$ 26.14
11	37992P		Cabinet Top		Appelez-nous	-
12	35887		Hold-down Clip		Appelez-nous	-
13	38887		Graphic Panel Models Lws01ax		Appelez-nous	-
14	38171		Panel, Control Support				$ 46.87
15	Y00161		Ground Clip		Appelez-nous	-
16	38841W		Skirt, Timer Knob		Appelez-nous	-
17	33898		Timer Knob White		Appelez-nous	-
18	WP36701W		Assy,knob-rotary-white   (Replaces: 33688)			Immediately	$ 44.31

    View Diagram in Separate Window       Print Part List
