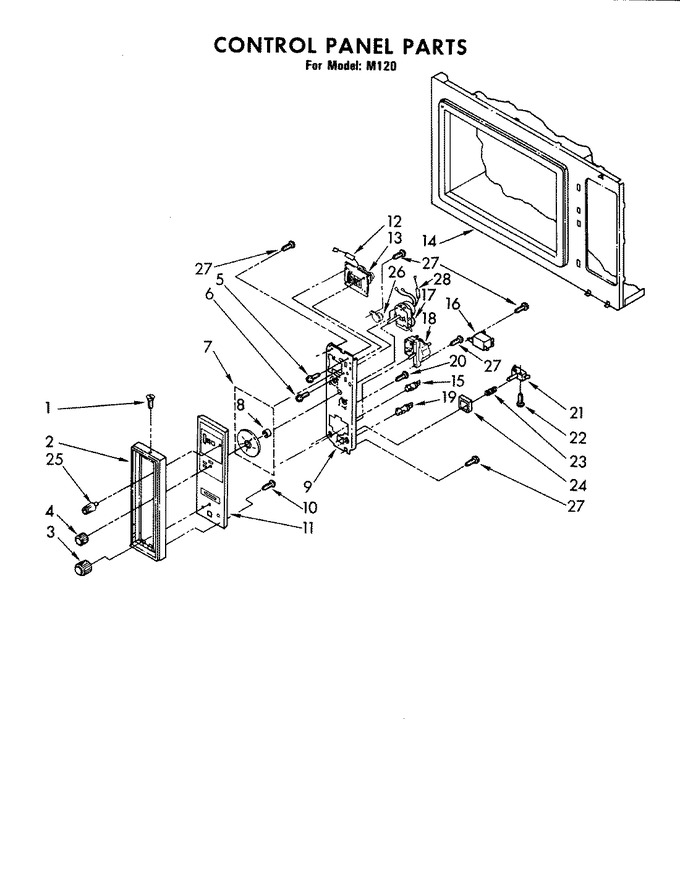

02 - Control Panel


03 - Door Assembly


04 - Magnetron Assembly


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701125		Screw		Appelez-nous	-
2	701057		Frame		Appelez-nous	-
3	700997		Knob				$ 26.89
4	700997		Knob				$ 26.89
5	Y701127		Screw		Appelez-nous	-
6	DE81-03228A		Screw   (Replaces: 701038)				$ 178.69
7	DD81-03783A		Dial   (Replaces: 701100)				$ 253.15
8	DE81-08148A		Ring   (Replaces: 701099)				$ 239.72
9	701051		Bracket		Appelez-nous	-
10	DE81-09451A		Screw   (Replaces: 701089)				$ 173.86
11	DE81-08893A		Panel, Control   (Replaces: 701162)				$ 163.76
12	DE81-08149A		Resistor   (Replaces: 701116)				$ 196.89
13	701050		Timer		Appelez-nous	-
15	700970		Light		Appelez-nous	-
16	701002		Relay		Appelez-nous	-
17	701059		Timer		Appelez-nous	-
18	701077		Switch		Appelez-nous	-
19	700970		Light		Appelez-nous	-
20	701128		Screw		Appelez-nous	-
21	701058		Switch		Appelez-nous	-
22	701147		Screw		Appelez-nous	-
23	701062		Spring		Appelez-nous	-
24	701052		Button		Appelez-nous	-
25	700993		Knob				$ 62.10
26	DE81-05851A		Buzzer   (Replaces: 701084)				$ 110.78
27	700965		Screw		Appelez-nous	-
28	701163		Resistor		Appelez-nous	-
