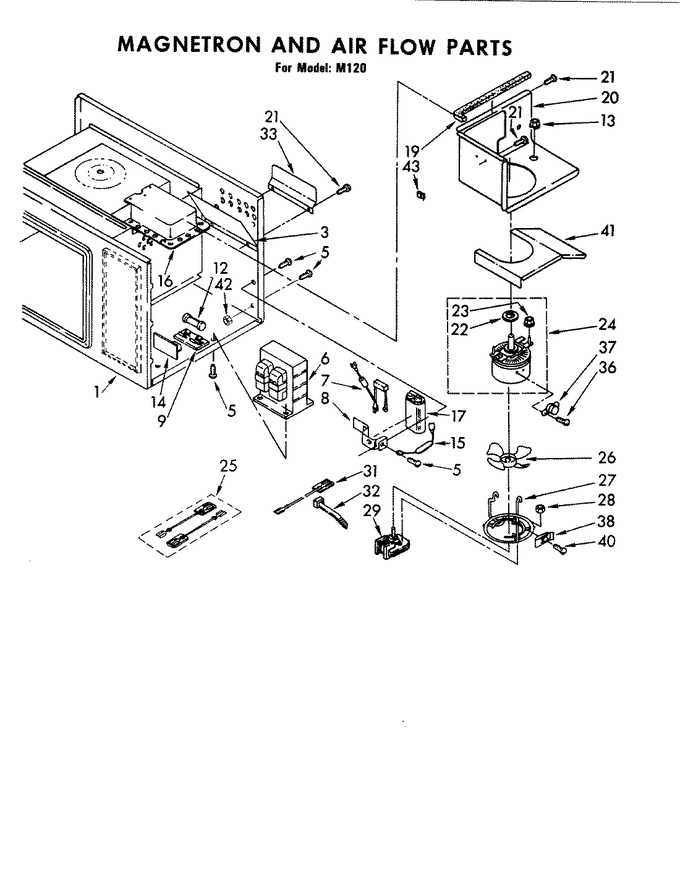

SELECT A DIAGRAM

01 - Cabinet Assembly


02 - Control Panel


03 - Door Assembly


04 - Magnetron Assembly


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note Cabinet		Appelez-nous	-
3	700995		Deflector		Appelez-nous	-
5	700971		Screw		Appelez-nous	-
6	700998		Transformer		Appelez-nous	-
7	DE81-05104A		Rectifier   (Replaces: 701117)				$ 177.64
8	701007		Bracket		Appelez-nous	-
9	701034		Fuse Block				$ 83.05
12	701035		Fuse, 250v 20a				$ 94.66
13	701003		Bushing		Appelez-nous	-
14	DE81-05656A		Shield   (Replaces: 701091)				$ 200.67
15	DE81-04702A		Varistor   (Replaces: 701120)				$ 402.24
16	W10124350		Not Required Part Or See Note		Appelez-nous	-
17	DE81-04333A		Capacitor   (Replaces: 701093)				$ 100.49
17	DD81-03613A		Capacitor   (Replaces: 701097)				$ 34.51
19	700994		Seal				$ 29.03
20	700979		Duct		Appelez-nous	-
21	700966		Screw		Appelez-nous	-
22	701076		Gasket		Appelez-nous	-
23	11069197		Nut   (Replaces: 701075)		Appelez-nous	-
24	701154		Magnetron		Appelez-nous	-
24	00701074		Magnetron   (Replaces: 701074)				$ 305.85
25	DE81-04237A		Wire Kit   (Replaces: 700973)				$ 391.00
26	DE81-04916A		Fan Blade   (Replaces: 700980)				$ 1,139.87
27	DE81-06300A		Mount   (Replaces: 701092)				$ 111.27
28	701155		Nut		Appelez-nous	-
29	DE81-04511A		Transmotor   (Replaces: 701042)				$ 139.81
31	701011		Wire		Appelez-nous	-
32	701016		Tie		Appelez-nous	-
33	701001		Deflector		Appelez-nous	-
36	700965		Screw		Appelez-nous	-
37	700989		Thermostat				$ 199.34
38	701009		Fastener		Appelez-nous	-
40	701156		Screw		Appelez-nous	-
41	701094		Shield		Appelez-nous	-
42	701022		Nut Hex		Appelez-nous	-
43	701126		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
