Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701101 Harness,main Appelez-nous -
2 DD81-03623A Harness, Control   (Replaces: 701103) Special Order $ 364.64

3 701105 Harness, Interlock Appelez-nous -
4 DE81-04530A Cap   (Replaces: 701113) Special Order $ 182.86

5 DE81-04972A Plug   (Replaces: 701111) Special Order $ 233.69

6 DE81-04529A Cap   (Replaces: 701114) Special Order $ 198.84

7 701112 Plug Appelez-nous -
8 DE81-10268A Receptacle   (Replaces: 701140) Special Order $ 1,067.33

9 701141 Plug, Terminal Appelez-nous -
10 701030 Block, Terminal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

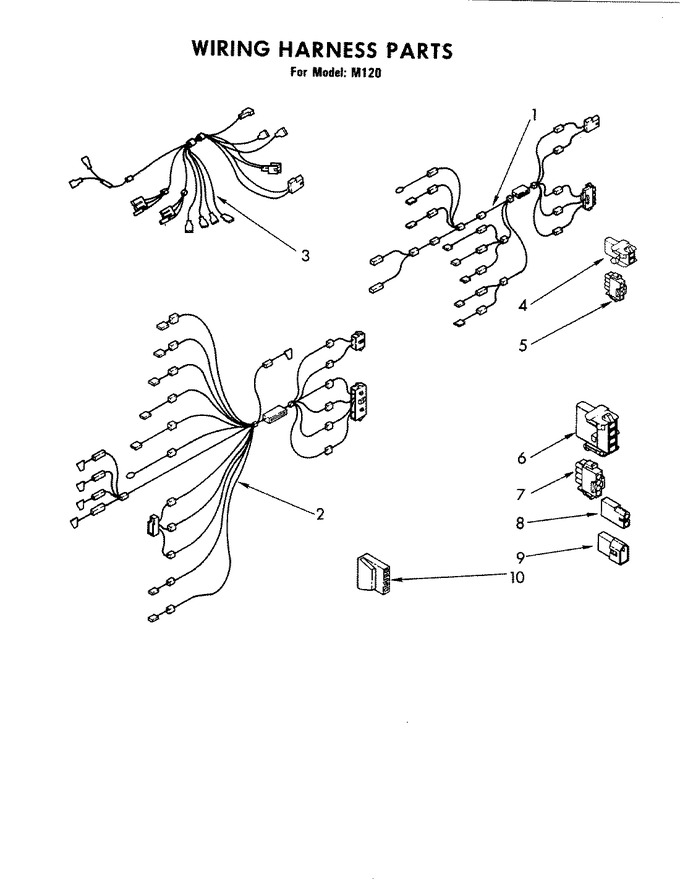

Diagram for M120
