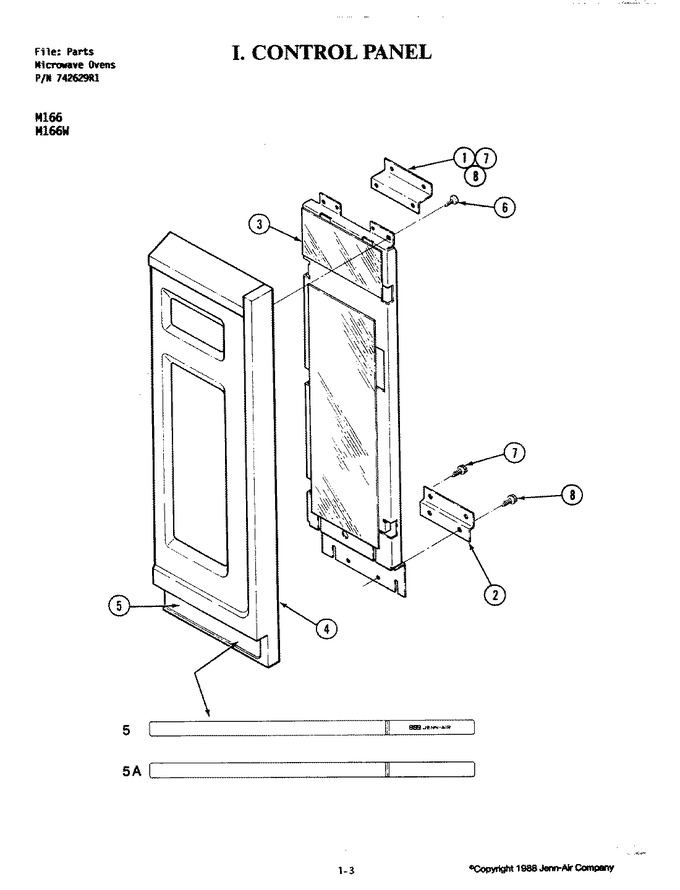

02 - Control Panel (m166)
03 - Door (m166)
04 - Internal Controls (m166)
05 - Internal Controls (m166w)
06 - Oven Liner-body (m166)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790100 | Bracket, Control Panel-upper | 1 |
|
- | ||||
| 1 | 02030128 | Bracket, Control Panel-upper | 3 |
|
- | ||||
| 2 | 790101 | Bracket, Control Panel-lower | 1 |
|
- | ||||
| 2 | 02030137 | Bracket, Control Panel-lower | 3 |
|
- | ||||
| 3 | 790108 | Control | 1 |
|
- | ||||
| 3 | 01210077 | Board, Control | 3 |
|
- | ||||
| 4 | 790103 | Frame, Control Panel | 1 |
|
- | ||||
| 4 | 02060256 | Frame, Control Panel | 3 |
|
- | ||||
| 5 | 790109 | Insert | 1 |
|
- | ||||
| 5 | 02100105 | Insert (no Logo) | 1 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note | 2 |
|
- | ||||
| 6 | 03020011 | Screw | 3 |
|
- | ||||
| 6 | 790106 | Screw | 1 |
|
- | ||||
| 7 | Y03010147 | Screw (top) | 3 |
|
- | ||||
| 7 | 790107 | Screw | 1 |
|
- | ||||
| 8 | 03020041 | Screw | 1 |
|
- |
