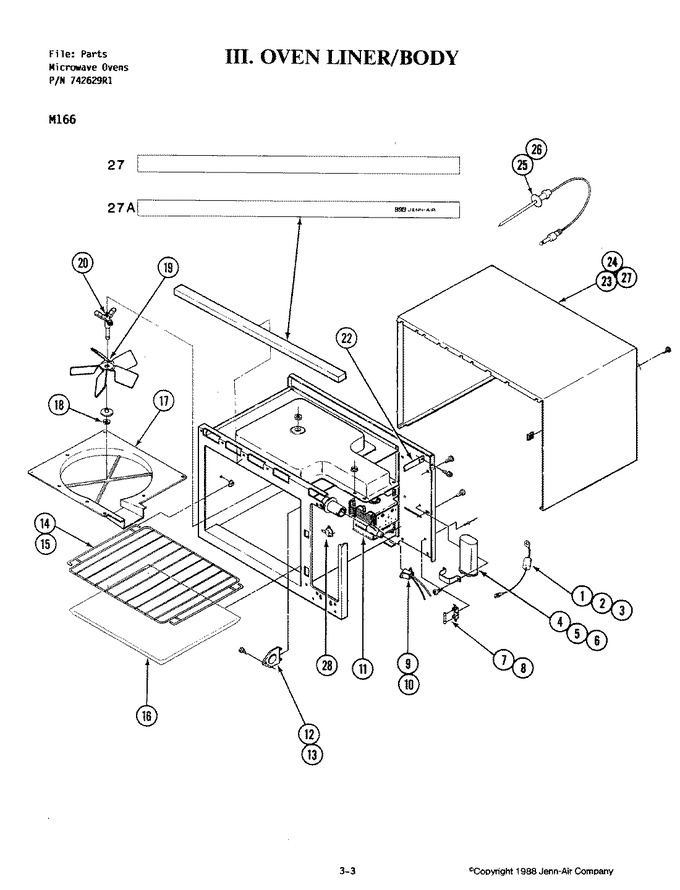

06 - Oven Liner-body (m166)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790162 | Diode | 1 |
|
- | ||||
| 1 | Y04010206 | Diode | 3 |
|
- | ||||
| 2 | WP8281227 | Screw (Replaces: Y03010144) | 3 |
|
$ 9.40 | ||||
| 2 | 790163 | Screw | 1 |
|
- | ||||
| 3 | 790142 | Nut | 1 |
|
- | ||||
| 4 | 790164 | Capacitor | 1 |
|
- | ||||
| 4 | Y01020023 | Capacitor | 3 |
|
- | ||||
| 5 | 790165 | Bracket | 1 |
|
- | ||||
| 5 | 02030123 | Bracket | 3 |
|
- | ||||
| 6 | Y03020076 | Screw | 1 |
|
- | ||||
| 7 | Y01100036 | Clip, Fuse | 3 |
|
- | ||||
| 7 | 790167 | Clip, Fuse | 1 |
|
- | ||||
| 8 | Y01050005 | Fuse 15a 125v | 3 |
|
- | ||||
| 8 | 790168 | Fuse | 1 |
|
- | ||||
| 9 | 01100045 | Receptacle, Light | 3 |
|
- | ||||
| 9 | 790169 | Socket, Lamp | 1 |
|
- | ||||
| 10 | Y01060024 | Bulb, Light | 3 |
|
- | ||||
| 10 | 790170 | Lamp | 1 |
|
- | ||||
| 11 | 790171 | Magnetron | 1 |
|
- | ||||
| 11 | 01040004 | Magnetron | 3 |
|
- | ||||
| 12 | Y02400007 | Lens, Bulb | 3 |
|
- | ||||
| 12 | 790172 | Lens, Lamp | 1 |
|
- | ||||
| 13 | 790173 | Screw | 1 |
|
- | ||||
| 13 | 03010098 | Screw | 3 |
|
- | ||||
| 14 | Y02410004 | Rack, Oven | 3 |
|
- | ||||
| 14 | 790174 | Rack, Oven | 1 |
|
- | ||||
| 15 | 790175 | Support, Rack | 1 |
|
- | ||||
| 15 | 02010031 | Support, Rack | 3 |
|
- | ||||
| 16 | Y02280024 | Shelf, Glass | 3 |
|
- | ||||
| 16 | 790176 | Shelf, Glass | 1 |
|
- | ||||
| 17 | Y02300045 | Cover, Stirrer | 3 |
|
- | ||||
| 17 | Y03110050 | Clip | 1 |
|
- | ||||
| 17 | 790092 | Cover, Stirrer | 1 |
|
- | ||||
| 18 | 790093 | Clip, Stirrer | 1 |
|
- | ||||
| 18 | Y03110055 | Clip, Stirrer | 3 |
|
- | ||||
| 19 | 790094 | Blade, Bushing Assembly | 1 |
|
- | ||||
| 19 | 04021190 | Blade, Bushing Assembly | 3 |
|
- | ||||
| 20 | 790095 | Shaft, Stirrer | 1 |
|
- | ||||
| 20 | 02360045 | Shaft, Stirrer | 3 |
|
- | ||||
| 21 | 03050007 | Nut, Shaft Stirrer | 3 |
|
- | ||||
| 21 | 790096 | Nut, Shaft Stirrer | 1 |
|
- | ||||
| 22 | 02020020 | Brace, Upper Right Support | 3 |
|
- | ||||
| 22 | 790097 | Brace, Support (upper) | 1 |
|
- | ||||
| 23 | 02140070 | Cabinet (blk) | 3 |
|
- | ||||
| 23 | 790098 | Cabinet | 1 |
|
- | ||||
| 24 | 03110046 | Clip, Cabinet (lt) | 3 |
|
- | ||||
| 24 | 790099 | Clip, Cabinet | 1 |
|
- | ||||
| 25 | 790177 | Probe, Temp | 1 |
|
- | ||||
| 25 | 01220002 | Probe, Temp | 3 |
|
- | ||||
| 26 | 01170008 | Jack, Probe | 3 |
|
- | ||||
| 26 | 790178 | Jack, Probe | 1 |
|
- | ||||
| 27 | 790180 | Trim, Top (no Logo) | 1 |
|
- | ||||
| 27 | 02100177 | Trim, Top (logo) | 1 |
|
- | ||||
| 28 | Y01180008 | Switch, Temperature Limit | 1 |
|
- | ||||
| 29 | 02240682 | Label, Cook Code | 1 |
|
- |
