01 - Blower Assy. (m166)
02 - Control Panel (m166)

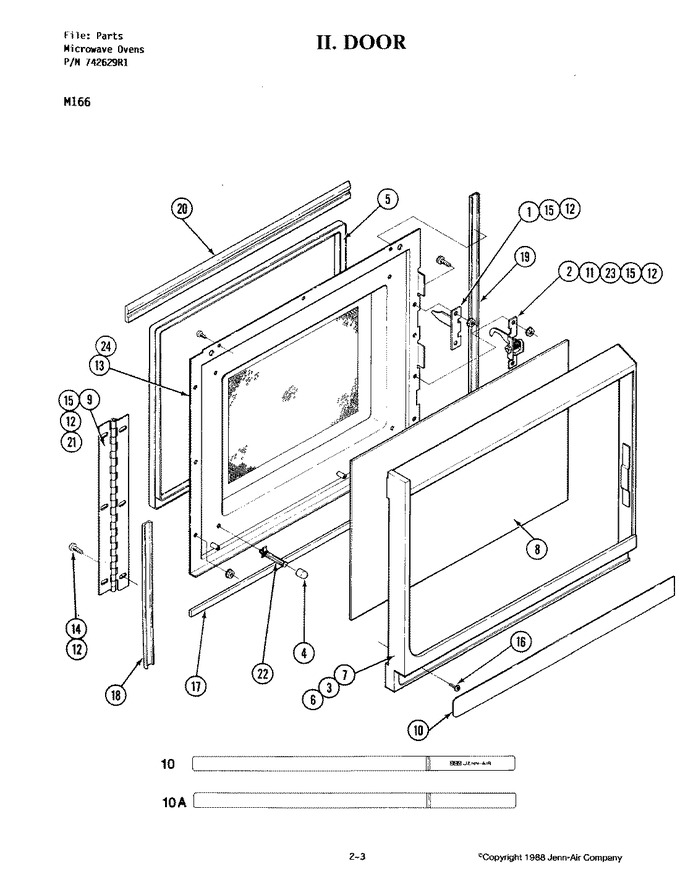

03 - Door (m166)
04 - Internal Controls (m166)
05 - Internal Controls (m166w)
06 - Oven Liner-body (m166)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790110 | Activator, Monitor | 1 |
|
- | ||||
| 2 | 790111 | Bracket, Door Latch | 1 |
|
$ 101.97 | ||||
| 3 | 790112 | Bracket, Door Trim | 1 |
|
- | ||||
| 4 | Y790113 | Bumper | 1 |
|
- | ||||
| 5 | Y790114 | Choke-filler | 1 |
|
- | ||||
| 6 | 790115 | Extrusion, Handle | 1 |
|
- | ||||
| 7 | 790116 | Frame-door | 1 |
|
- | ||||
| 8 | 790117 | Glass, Door | 1 |
|
- | ||||
| 9 | Y790118 | Hinge-door | 1 |
|
- | ||||
| 10 | 790109 | Insert | 1 |
|
- | ||||
| 10 | 02100105 | Insert (no Logo) | 1 |
|
- | ||||
| 11 | 790120 | Latch-door | 1 |
|
- | ||||
| 12 | 790121 | Nut | 1 |
|
- | ||||
| 13 | 790122 | Panel-inner | 1 |
|
- | ||||
| 14 | 790123 | Screw | 1 |
|
- | ||||
| 15 | 790124 | Screw | 1 |
|
- | ||||
| 16 | 790125 | Screw | 1 |
|
- | ||||
| 17 | 790126 | Seal-bottom | 1 |
|
- | ||||
| 18 | 790127 | Seal, Hinge Side | 1 |
|
- | ||||
| 19 | 790128 | Seal, Latch Side | 1 |
|
- | ||||
| 20 | 790129 | Seal, Top | 1 |
|
- | ||||
| 21 | 790130 | Shim, Door Hinge | 1 |
|
- | ||||
| 22 | 790131 | Spacer, Door Window | 1 |
|
- | ||||
| 23 | 790132 | Spring, Door Latch | 1 |
|
- | ||||
| 23 | 790133 | Tape (double-sided) | 1 |
|
- | ||||
| 23 | Y03010113 | Screw | 1 |
|
- | ||||
| 24 | 790134 | Window, Polyester | 1 |
|
- |
