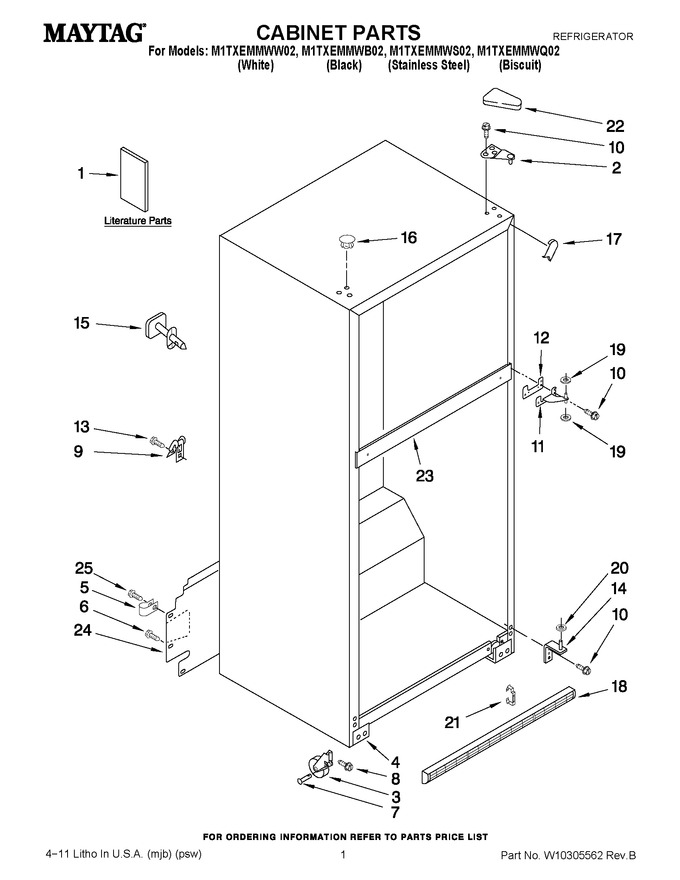

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251542 | Energy Label |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual Ref./ Frz. |
|
$ 30.30 | |||||
| 1 | W10142143 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10249207 | Use & Care Guide (trilingual) |
|
- | |||||
| 1 | W10249206 | Use & Care Guide (bilingual) |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 89.51 | ||||
| 3 | WP2166108 | Roller, Front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 10.06 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 8 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.47 | |||||
| 9 | 549193 | Clamp, Cord |
|
$ 12.05 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 78.88 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.05 | ||||
| 14 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
Immediately | $ 7.62 | ||||
| 15 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 16 | 2200924 | Hole Plug (6) (biscuit) |
|
- | |||||
| 16 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 19.60 | |||||
| 16 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 16.29 | |||||
| 17 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 17 | W10283958 | Corner Filler (2) (biscuit) (Replaces: 2200926) |
|
$ 21.97 | |||||
| 17 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 11.21 | |||||
| 18 | 2254315 | Grille (includes Illus. 21) (black) |
|
$ 41.54 | |||||
| 18 | 2254313 | Grille (includes Illus. 21) (white) |
|
$ 41.62 | |||||
| 18 | 2254316 | Grille (includes Illus. 21) (biscuit) |
|
- | |||||
| 19 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 20 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 21 | 2189356 | Clip, Grille (2) |
|
$ 5.70 | |||||
| 22 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 16.39 | ||||
| 22 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 17.31 | |||||
| 22 | 2213364 | Cover, Hinge (biscuit) |
|
$ 16.02 | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | 2254576 | Cover, Unit |
|
$ 48.13 | |||||
| 25 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 |
