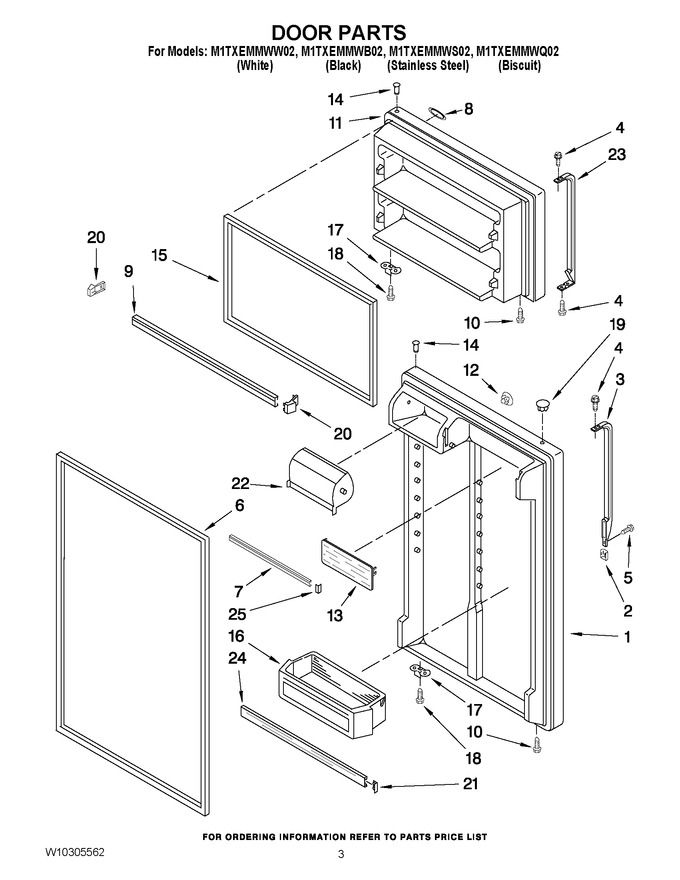

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023688 | Refrigerator Door (includes Illus. 6 & 14) (biscuit) (Replaces: 2205284) |
|
- | |||||
| 1 | W11023679 | Refrigerator Door (includes Illus. 6 & 14) (white) (Replaces: 2183920) |
|
$ 650.01 | |||||
| 1 | W11023687 | Refrigerator Door (includes Illus. 6 & 14) (black) (Replaces: 2200714) |
|
$ 690.38 | |||||
| 1 | W10271883 | Refrigerator Door (includes Illus. 6 & 14) (stainless Steel) |
|
- | |||||
| 2 | 2193143B | Handle, Trim (black) |
|
- | |||||
| 2 | 2193143W | Handle, Trim (white) |
|
$ 21.66 | |||||
| 2 | 2193143T | Handle, Trim (biscuit) |
|
- | |||||
| 3 | 2254533T | Handle, Refrigerator (biscuit) |
|
$ 70.12 | |||||
| 3 | 2254533B | Handle, Refrigerator (black) |
|
$ 68.18 | |||||
| 3 | WP2254533W | Handle, Refrigerator (white) (Replaces: 2254533W) |
|
$ 154.76 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 5 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 6.80 | |||||
| 6 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 6 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 283.67 | |||||
| 7 | WP2201061 | Trim (Replaces: 2195378) |
|
$ 106.56 | |||||
| 8 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 60.43 | ||||
| 9 | 2195947 | Trim, Door Shelf |
|
$ 50.94 | |||||
| 10 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 11 | W11023679 | Freezer Door (includes Illus. 14 & 15) (white) (Replaces: 2182489) |
|
$ 650.01 | |||||
| 11 | W11023688 | Freezer Door (includes Illus. 14 & 15) (biscuit) (Replaces: 2204686) |
|
- | |||||
| 11 | W10271885 | Freezer Door (includes Illus. 14 & 15) (stainless Steel) |
|
- | |||||
| 11 | W11023687 | Freezer Door (includes Illus. 14 & 15) (black) (Replaces: 2200711) |
|
$ 690.38 | |||||
| 12 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.66 | ||||
| 12 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 6.83 | |||||
| 12 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 6.53 | |||||
| 13 | WP2188236 | Shelf, Flip-up (Replaces: 2188236) |
|
$ 55.18 | |||||
| 14 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 15 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 287.41 | |||||
| 15 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 288.01 | |||||
| 16 | WP2204812 | Bin, Door Shelf (Replaces: 2204812) |
|
$ 68.96 | |||||
| 17 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 19 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 6.85 | |||||
| 19 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 19 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 20 | WP2195916K | Plug-trim (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 21 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 10.96 | ||||
| 22 | WP2218118 | Compartment Door (Replaces: 2218118) |
|
$ 70.22 | |||||
| 23 | WPW10292303 | Handle, Freezer (black) (Replaces: W10292303) |
|
$ 123.59 | |||||
| 23 | WPW10292304 | Handle, Freezer (biscuit) (Replaces: W10292304) |
|
$ 132.81 | |||||
| 23 | WPW10291249 | Handle, Freezer (white) (Replaces: W10291249) |
|
$ 132.89 | |||||
| 24 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 98.35 | |||||
| 25 | WP2156007 | Plug-trim (Replaces: 2156007) |
|
Immediately | $ 6.89 |
