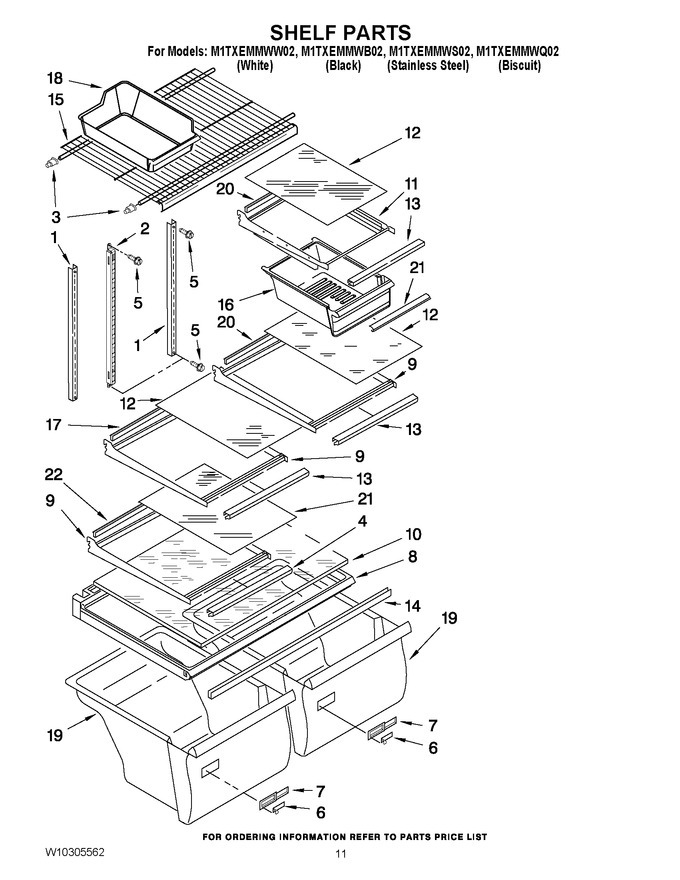

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 12.60
4	2188691		Trim,shelf Front				$ 50.70
5	WP489478		Screw   (Replaces: 489478)				$ 6.98
6	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
7	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 13.55
8	WP2314549		Crisper Cover   (Replaces: 2314502)				$ 239.23
9	2201102E		Shelf, Cantilever		Appelez-nous	-
10	WP2176225		Insert, Crisper Cover   (Replaces: 2210573)				$ 226.64
11	2201106		Pan Shelf, Cantilever				$ 77.79
12	2174694		Glass, Shelf				$ 84.37
13	2188685		Trim-shelf-front		Appelez-nous	-
14	WP2172748		Crisper Support   (Replaces: 2314478)				$ 87.50
15	2189454		Shelf, Freezer		Appelez-nous	-
16	WP2218132K		Pan, Meat   (Replaces: 2218132K)			Immediately	$ 143.68
17	WP2188689		Trim, Shelf Rear   (Replaces: 2188689)				$ 104.18
18	2254352A		Bucket, Ice   (Replaces: 2254352)				$ 50.27
19	W10854037		Crisper Pan (includes Illus. 6 & 7)   (Replaces: 2218130)			Immediately	$ 153.59
20	WP2188689		Trim-shelf-rear   (Replaces: 2188687)				$ 104.18
21	2174693		Glass, Shelf Full				$ 95.31
22	2201104E		Frame Assy		Appelez-nous	-
