Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13564L Lid Appelez-nous -
2 13554L Cover,upper Appelez-nous -
3 13558 No Longer Available Appelez-nous -
4 13559 Beam,cross Appelez-nous -
5 13555 Support Appelez-nous -
6 13569 Bracket,stopper Appelez-nous -
7 13556L Main Frame, Left, Almond Appelez-nous -
8 13563L Cover,rear Appelez-nous -
9 13557L Main Frame, Right, Almond Appelez-nous -
10 Y00000000 See Note Cabinet Assembly Appelez-nous -
11 DD81-03543A Screw   (Replaces: 13568) Special Order $ 1,273.27

12 13553L Top,washer Appelez-nous -
13 13565 Sticker,instruction Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

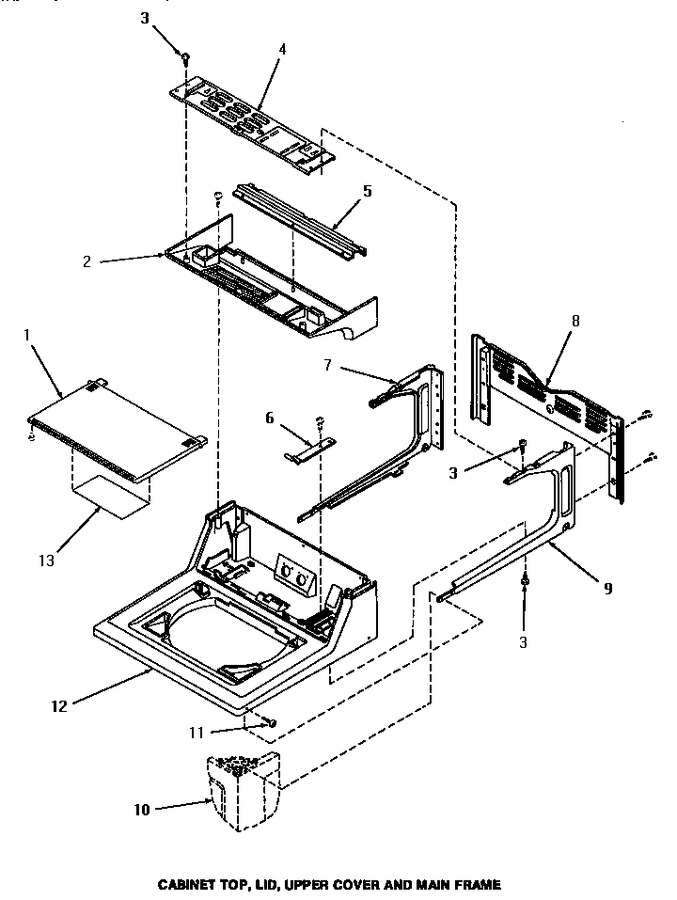

Diagram for MA8800
