Diagram for 01 - Agitator & Washtub
01 - Agitator & Washtub

Diagram for 02 - Cabinet Assy, Rear Panel & Power Cord
02 - Cabinet Assy, Rear Panel & Power Cord

Diagram for 03 - Cabinet Top, Lid, Up Cover & Main Frame
03 - Cabinet Top, Lid, Up Cover & Main Frame

Diagram for 04 - Clutch Base And Clutch Assy
04 - Clutch Base And Clutch Assy

Diagram for 05 - Control Panel & Controls
05 - Control Panel & Controls

Diagram for 06 - Drain Pump
06 - Drain Pump

Diagram for 07 - Drain Pump & Hoses
07 - Drain Pump & Hoses

Diagram for 08 - Lid Switch, Inlet Valves & Hoses
08 - Lid Switch, Inlet Valves & Hoses

Diagram for 09 - Motor, Belt & Solenoid
09 - Motor, Belt & Solenoid

Diagram for 10 - Outer Tub
10 - Outer Tub


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13583 Pump,drain Appelez-nous -
2 13584 Fan Appelez-nous -
3 13591 Base,pump Appelez-nous -
4 13592 Screw Appelez-nous -
5 Y00000000 See Note Seal Support Appelez-nous -
6 13587 Seal,ring Appelez-nous -
7 Y00000000 See Note Impeller Appelez-nous -
8 Y00000000 See Note Pump Casing Appelez-nous -
9 DD81-03946A Cover,trap   (Replaces: 13589) Special Order $ 159.77

10 DD81-03561A Screw   (Replaces: 13590) Special Order $ 154.74

11 DE81-05276A Washer   (Replaces: 13593) Special Order $ 285.07

12 350930 Spray Paint   (Replaces: 13586) In-Stock Immediately $ 34.39

NI 13585 Trap,button Appelez-nous -
NI 13608 Assy,wiring Harness-pump Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

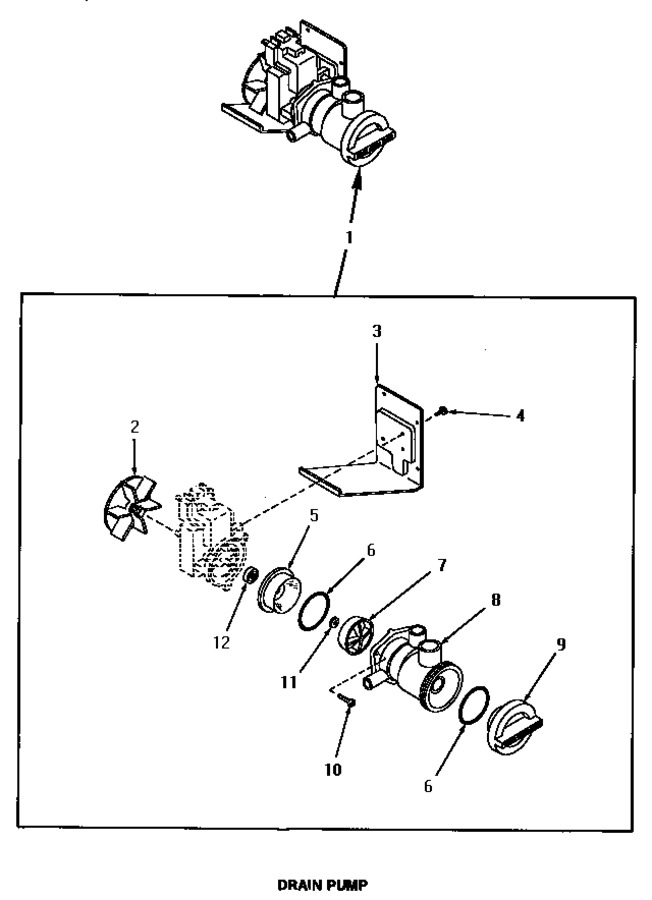

Diagram for MA8800
