01 - Agitator & Washtub


02 - Cabinet Assy, Rear Panel & Power Cord


03 - Cabinet Top, Lid, Up Cover & Main Frame


04 - Clutch Base And Clutch Assy


05 - Control Panel & Controls


06 - Drain Pump


07 - Drain Pump & Hoses

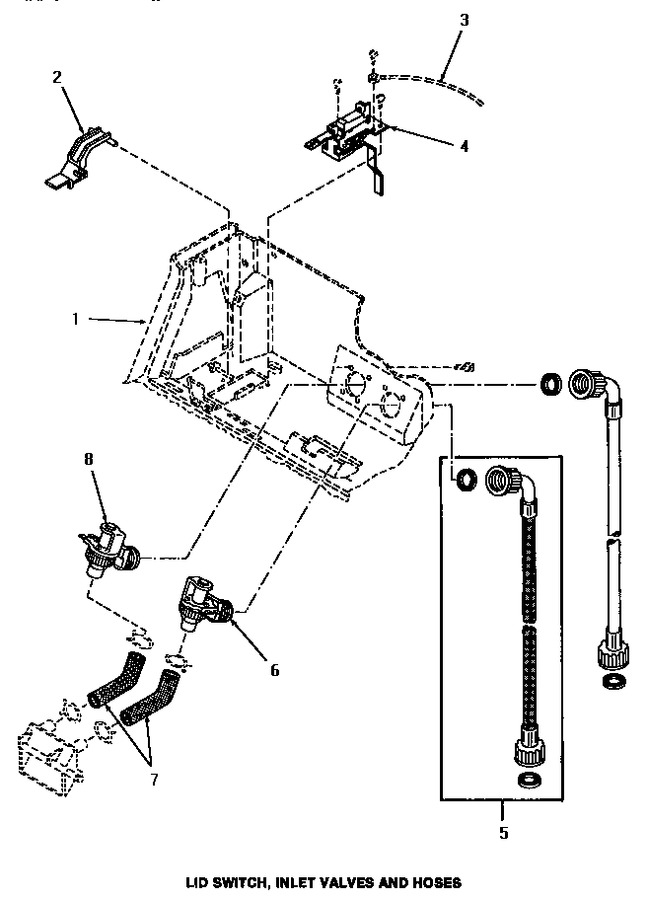

08 - Lid Switch, Inlet Valves & Hoses


09 - Motor, Belt & Solenoid


10 - Outer Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Cabinet Top		Appelez-nous	-
2	13567		Lever,lid Switch				$ 1,262.82
3	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
4	13566		Switch,lid		Appelez-nous	-
5	WP76314		Hose   (Replaces: Y13549)				$ 38.79
6	13561		No Longer Available		Appelez-nous	-
7	13562		Hose,water Inlet		Appelez-nous	-
8	13560		Inlet Valve, Cold		Appelez-nous	-
