SELECT A DIAGRAM

01 - Latch And Vent, Literature


02 - Upper Oven


03 - Lower Oven


04 - Lower Oven Door


05 - Upper Oven Door


06 - Control Panel


07 - Wiring Harness

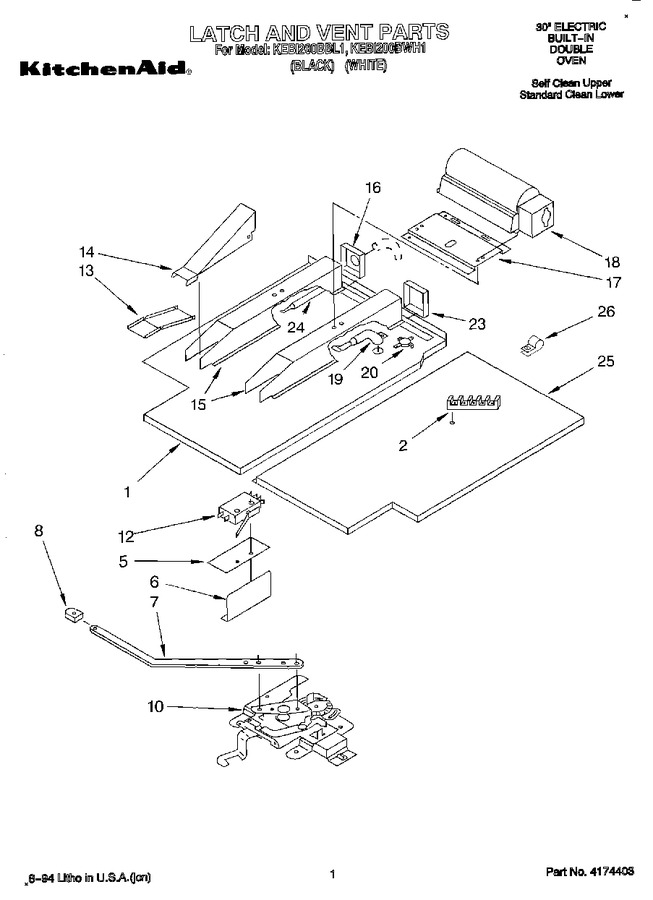

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183949		Baffle, Vent		Appelez-nous	-
1	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
2	WP112432		Nut   (Replaces: 112432)				$ 7.16
2	308043		Screw (2)		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
5	98106		Screw		Appelez-nous	-
5	309245		Insulator, Switch		Appelez-nous	-
6	313035		Shield, Latch		Appelez-nous	-
6	309258		Screw		Appelez-nous	-
7	308422		Screw		Appelez-nous	-
7	3184002		Handle, Latch		Appelez-nous	-
8	3184039		Knob, Latch Handle		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
10	3187081		Latch Mechanism		Appelez-nous	-
12	3178668		Switch, Latch		Appelez-nous	-
13	3183954		Nozzel, Vent Bottom (2)		Appelez-nous	-
14	3183955		Nozzel, Vent Top (2)		Appelez-nous	-
15	3184078		Box, Vent (2)		Appelez-nous	-
15	3179116		Screw		Appelez-nous	-
15	4173231		Screw		Appelez-nous	-
16	3183965		End, Vent Box		Appelez-nous	-
17	WP3177991		Screw (4)   (Replaces: 3177991)			Immediately	$ 6.47
17	3183533		Bracket, Mounting Fan		Appelez-nous	-
18	3183720		Blower, Fan		Appelez-nous	-
19	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.07
19	3183792		Tube, Vent		Appelez-nous	-
20	3149650		Spst Thermostat		Appelez-nous	-
23	3183964		End, Vent Box		Appelez-nous	-
24	3183793		Tube, Vent Lower Oven		Appelez-nous	-
25	3183948		Baffle, Vent Mtg.		Appelez-nous	-
25	WP488729		Screw (14)   (Replaces: 3148107)			Immediately	$ 7.01
26	3183532		Clamp, Tube		Appelez-nous	-
26	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
	LIT3186506		Tech Sheet		Appelez-nous	-
	LIT3188198		Use & Care Guide		Appelez-nous	-
	LIT3182137		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
