SELECT A DIAGRAM

01 - Latch And Vent, Literature

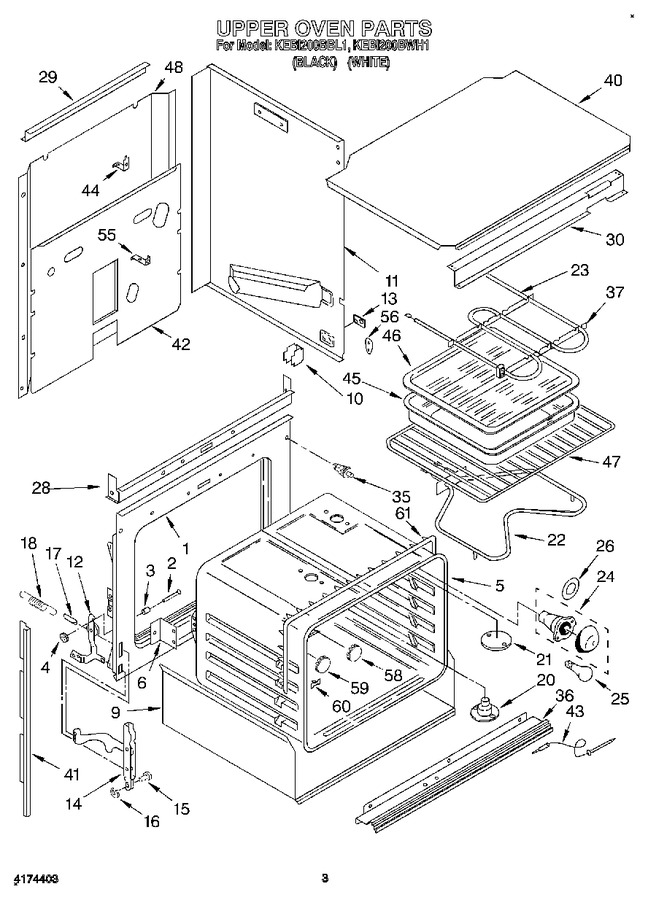

02 - Upper Oven


03 - Lower Oven


04 - Lower Oven Door


05 - Upper Oven Door


06 - Control Panel


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186975		Frame Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3182032		Oven 30``		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
6	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
6	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	3185944		Insulation Tray		Appelez-nous	-
10	311774		Support, Side Wrapper (4)		Appelez-nous	-
10	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
11	WP488729		Side Wrapper (screw,)   (Replaces: 3148107)			Immediately	$ 7.01
11	3185956		Side Wrapper (l.h.)		Appelez-nous	-
11	3185953		Side Wrapper (r.h.)		Appelez-nous	-
12	3185662		Hinge, Ear (right Side)		Appelez-nous	-
12	3185663		Hinge, Ear (left Side)		Appelez-nous	-
13	310659		Plate, Side Panel (2)		Appelez-nous	-
13	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
14	3185664		Channel Arm (2)				$ 54.97
15	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
16	307594		Retainer Ring (2)		Appelez-nous	-
17	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
18	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
20	310839		Eliminator, Smoke		Appelez-nous	-
21	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
21	310662		Plate, Cover		Appelez-nous	-
22	3150532		Screw (4)		Appelez-nous	-
22	WP661416		Unit, Bake   (Replaces: 661416)				$ 131.33
23	3182451		Unit, Broil		Appelez-nous	-
24	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
26	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
28	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
28	3183796		Baffle, Top Insulation		Appelez-nous	-
29	3182585		Bracket, Support Control Frame		Appelez-nous	-
30	312713		Screw		Appelez-nous	-
30	3182585		Bracket, Mounting Control Frame		Appelez-nous	-
35	310345		Switch, Door				$ 94.86
36	3188145		Trim, Center Vent (white Model)		Appelez-nous	-
36	3188144		Trim, Center Vent (black Model)		Appelez-nous	-
36	309133		Vent, Center Trim (screw)		Appelez-nous	-
37	3150532		Screw (2)		Appelez-nous	-
37	3180694		Bracket, Element		Appelez-nous	-
40	3184099		Cover, Top		Appelez-nous	-
40	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
41	3187902		Side Trim (black Model, R.h.)		Appelez-nous	-
41	3187908		Side Trim (black Model, L.h.)		Appelez-nous	-
41	3187909		Side Trim (white Model, Lh)		Appelez-nous	-
41	3187903		Side Trim (white Model, Rh)		Appelez-nous	-
42	3182052		Panel, Back		Appelez-nous	-
42	WP488729		Screw (16)   (Replaces: 3148107)			Immediately	$ 7.01
43	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
43	3148440		Sensor, Heat		Appelez-nous	-
44	311582		Stand Off		Appelez-nous	-
45	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
46	4396923		Grid, Broiler   (Replaces: 3147563)			Immediately	$ 52.04
47	3185641		Rack, Straight				$ 67.33
47	3185640		Rack, Oven Offset		Appelez-nous	-
48	3185961		Cover, Rear		Appelez-nous	-
48	WP488729		Screw (9)   (Replaces: 3148107)			Immediately	$ 7.01
55	309102		Bracket Stand Off		Appelez-nous	-
55	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
56	310662		Coverplate		Appelez-nous	-
58	3182814		Button, Plug		Appelez-nous	-
59	3185086		Button, Plug		Appelez-nous	-
60	3169107		Plug, Oven		Appelez-nous	-
61	310435		Insulation, Oven		Appelez-nous	-
61	3185197		Seal, Door		Appelez-nous	-
61	310433		Insulation, Wrap		Appelez-nous	-
61	3149328		Insulation, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
