SELECT A DIAGRAM

01 - Latch And Vent, Literature


02 - Upper Oven

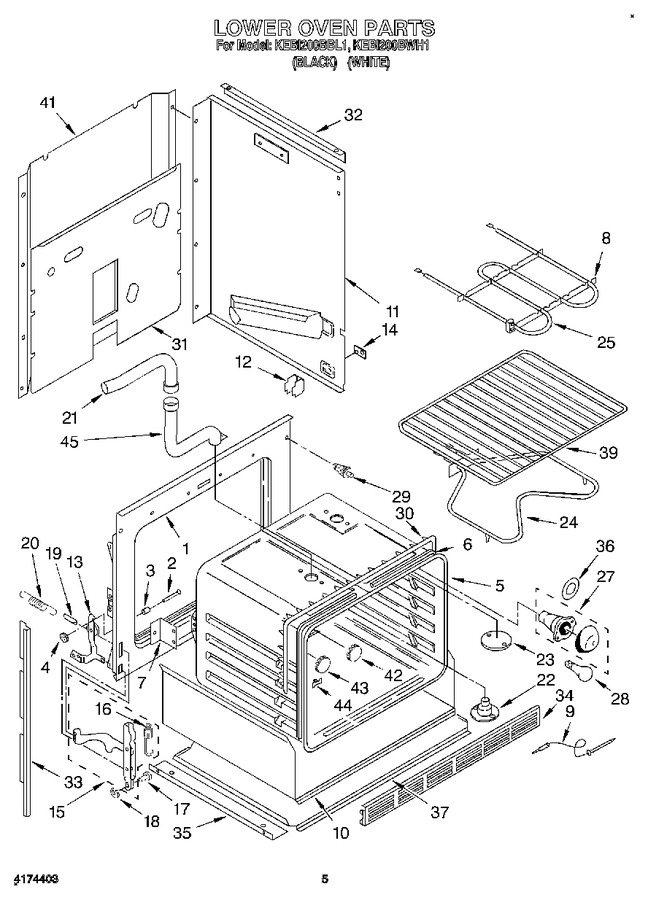

03 - Lower Oven


04 - Lower Oven Door


05 - Upper Oven Door


06 - Control Panel


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186977		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
5	3182032		Oven 30`` Standard Clean		Appelez-nous	-
6	3169283		Heat Seal		Appelez-nous	-
7	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
8	3180694		Bracket, Element		Appelez-nous	-
8	3150532		Screw (2)		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	3148440		Sensor, Heat		Appelez-nous	-
10	3185944		Insulation Tray		Appelez-nous	-
10	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
11	3185958		Side Wrapper (left Side)		Appelez-nous	-
11	3185955		Side Wrapper (right Side)		Appelez-nous	-
12	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
12	311774		Support, Side Wrapper (4)		Appelez-nous	-
13	3185662		Hinge, Ear (right Side)		Appelez-nous	-
13	3185663		Hinge, Ear (left Side)		Appelez-nous	-
14	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
14	310659		Plate, Side Panel (2)		Appelez-nous	-
15	3185665		Channel, Arm (2)		Appelez-nous	-
16	311092		Spring, Door Stop (2)		Appelez-nous	-
17	WP307986		Pin Hinge   (Replaces: 307986)				$ 11.78
18	307594		Retainer, Ring		Appelez-nous	-
19	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
20	308127		Spring, Oven Door (2)				$ 11.75
20	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.07
21	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
21	3182161		Tube, Lower Vent		Appelez-nous	-
22	310840		Eliminator, Smoke		Appelez-nous	-
22	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
23	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
23	310662		Plate, Cover		Appelez-nous	-
24	WP661416		Unit, Bake   (Replaces: 661416)				$ 131.33
25	3150532		Screw (4)		Appelez-nous	-
25	3182451		Unit, Broil		Appelez-nous	-
27	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
29	310345		Switch, Door				$ 94.86
30	3185197		Seal, Door		Appelez-nous	-
31	3182052		Panel, Back		Appelez-nous	-
31	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
32	255095		Support Angle (2)		Appelez-nous	-
32	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
33	3187905		Side Trim (black Model, R.h.)		Appelez-nous	-
33	3187911		Side Trim (black Model, L.h.)		Appelez-nous	-
33	WP488729		Side Trim (screw (14))   (Replaces: 3148107)			Immediately	$ 7.01
33	3187912		Side Trim (white Model, Lh)		Appelez-nous	-
33	3187906		Side Trim (white Model, R.h.)		Appelez-nous	-
34	3150349		Grill, Bottom (black)		Appelez-nous	-
34	309029		Grill, Bottom (screw (3))		Appelez-nous	-
34	3150350		Grill, Bottom (white)		Appelez-nous	-
34	WP488627		Grill, Bottom (screw (3))   (Replaces: 338156)				$ 6.81
35	311592		Angle, Support (2)		Appelez-nous	-
36	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
37	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
37	3185945		Cover, Bottom		Appelez-nous	-
39	3185640		Rack, Offset		Appelez-nous	-
39	3185641		Rack, Straight				$ 67.33
41	WP488729		Screw (11)   (Replaces: 3148107)			Immediately	$ 7.01
41	3185959		Cover, Rear		Appelez-nous	-
42	3182814		Button, Plug		Appelez-nous	-
43	3185086		Button, Plug		Appelez-nous	-
44	3169107		Plug, Oven		Appelez-nous	-
45	3182159		Tube, Vent		Appelez-nous	-
45	310435		Insulation, Oven		Appelez-nous	-
45	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.07
45	310433		Insulation, Wrap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
