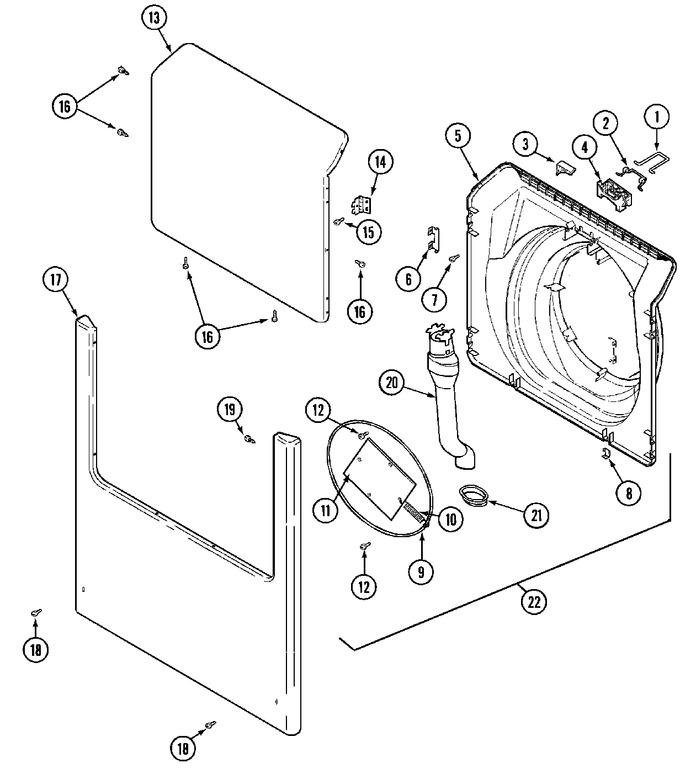

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002002		Hoop, Lock	35	Appelez-nous	-
002	22002003		Spring, Latch	35			$ 5.70
003	22002168		Support, Lock Hoop	35			$ 6.85
004	22002615		Door, Inner (w/vent-bsq)	35	Appelez-nous	-
004	22003078		Door, Inner (bsq)	50	Appelez-nous	-
005	22002038		Clip, Door (double)	35	Appelez-nous	-
006	22002007		Screw, Strike	35	Appelez-nous	-
007	22002039		Clip, Door (single)	35			$ 8.15
008	22002104		Frame, Wire	35	Appelez-nous	-
009	22002356		Spring, Plate	35	Appelez-nous	-
010	22002094		Plate	35	Appelez-nous	-
011	22002007		Screw, Wire Frame	35	Appelez-nous	-
012	22002333		Label, Open Door (washer)	35	Appelez-nous	-
012	22002660		Door, Outer (bsq-w/damper)	35	Appelez-nous	-
013	WP22002798		Hinge, Door----sub   (Replaces: 22002000)	35			$ 77.72
014	WP98006631		Screw, Hinge   (Replaces: 22002062)	35			$ 6.26
015	33002351		Screw (no.8-18 Outer Door (bsq)	35	Appelez-nous	-
016	22001496		Screw, Front Panel	35			$ 5.38
017	22002663		Panel, Front (bsq)	35	Appelez-nous	-
018	22002243		Screw, Front Panel & Hinge	35	Appelez-nous	-
018	22002244		Clip, Grounding	35	Appelez-nous	-
020	22002990		Vent Tube Assembly	50	Appelez-nous	-
021	WP22003075		Grommet, Vent Tube   (Replaces: 22003075)	50			$ 50.41
022	22003085		Liner, Door Assy W/vent (bsq)	50	Appelez-nous	-
