SELECT A DIAGRAM

01 - Control Center (pd)(mah14pdaaq)


02 - Top (mah14pdaaq)


03 - Cabinet-front (mah14pdaaq)


04 - Cabinet-rear (mah14pdaaq)


05 - Door & Front Panel (mah14pdaaq)


06 - Outer Tub(mah14pdaaq)


07 - Base(mah14pdaaq)


08 - Spinner Assy/outer Tub Cover(mah14pdaaq)


09 - Control Panel (mah14pdaaq)


10 - Door Shroud & Door Latch Assy(mah14pdaaq


11 - Wiring Information


12 - Motor & Motor Control(mah14pdaaq)

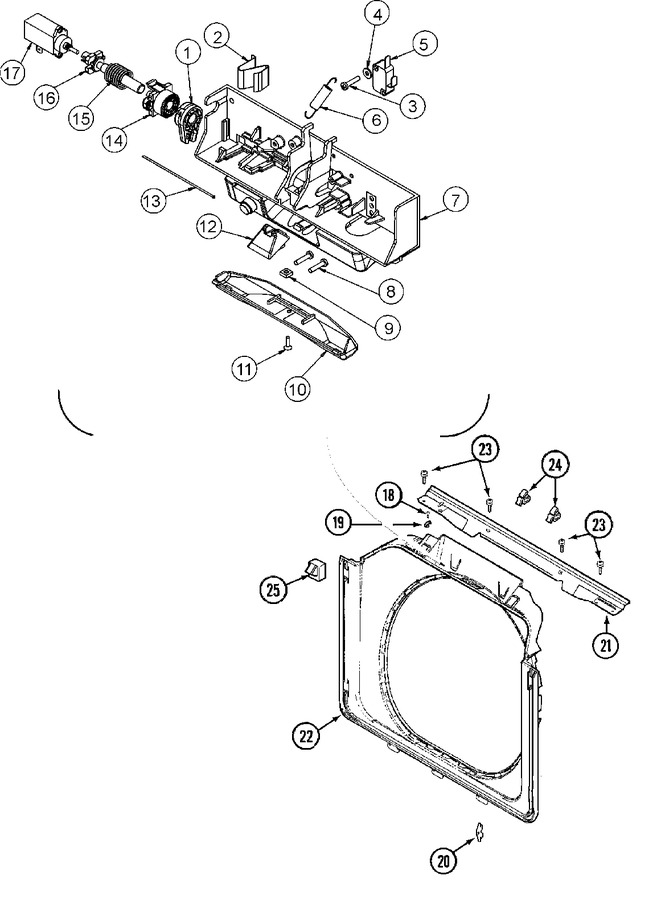

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003716		Rotating Gear, Latch	35			$ 5.51
002	22003717		Spring, Latch	35			$ 0.80
003	22001352		Screw, Check Switch	35	Appelez-nous	-
004	22002165		Washer, Door Lock Switch	35	Appelez-nous	-
005	WP22002162		Switch, Door Lock Spin Enable   (Replaces: 22002162)	35		Immediately	$ 51.28
006	22002158		Spring, Gear Return	35	Appelez-nous	-
007	22003722		Switch Holder Assy, Latch	35			$ 67.14
008	22003719		Screw, Latch	35	Appelez-nous	-
009	22003720		Nut, Latch	35	Appelez-nous	-
010	22002957		Cover, Latch Assembly (lwr)	35	Appelez-nous	-
011	WP241877		Screw   (Replaces: 22002435)	35			$ 3.56
012	22003055		Ramp, Door Hoop	35			$ 27.77
013	22002164		Cable, Door	35	Appelez-nous	-
014	22003715		Sliding Gear, Latch	35			$ 5.84
015	22003721		Spring, Axle / Latch	35			$ 6.56
016	22003718		Axle, Latch	35			$ 5.84
017	12002535		Motor, Wax   (Replaces: 22002119)	35		Immediately	$ 20.30
018	WP489128		Screw, Wire Harness Clip   (Replaces: 22001996)	35			$ 9.79
019	WP308605		Clip, Wire Harness   (Replaces: 22002014)	35			$ 10.08
020	22002612		Cover, Hinge (bsq)	35	Appelez-nous	-
021	22002015		Support, Door Lock	35	Appelez-nous	-
022	22002234		Shroud, Plastic (wht)	10	Appelez-nous	-
023	W11573574		Screw, Door Lock Support   (Replaces: 22001995)	35		Immediately	$ 12.62
024	Y310376		Clip, Wire Harness	35	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
