SELECT A DIAGRAM

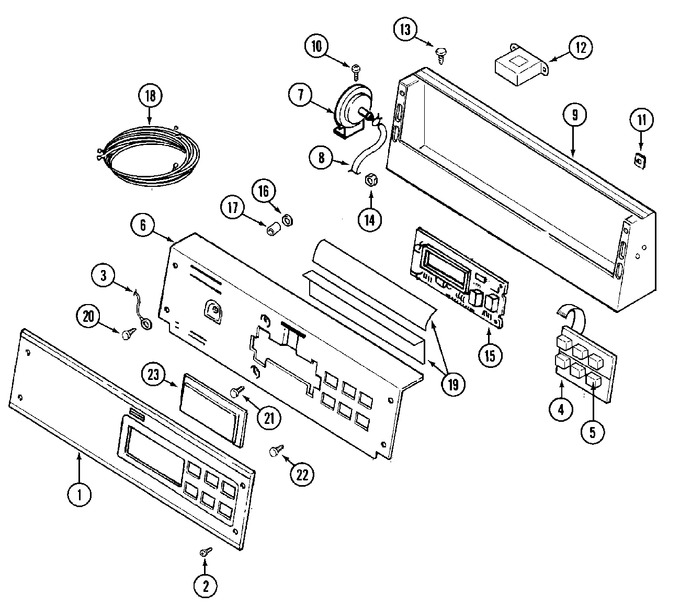

01 - Control Center (pd)(mah14pdaaq)


02 - Top (mah14pdaaq)


03 - Cabinet-front (mah14pdaaq)


04 - Cabinet-rear (mah14pdaaq)


05 - Door & Front Panel (mah14pdaaq)


06 - Outer Tub(mah14pdaaq)


07 - Base(mah14pdaaq)


08 - Spinner Assy/outer Tub Cover(mah14pdaaq)


09 - Control Panel (mah14pdaaq)


10 - Door Shroud & Door Latch Assy(mah14pdaaq


11 - Wiring Information


12 - Motor & Motor Control(mah14pdaaq)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002043		Panel, Control	35	Appelez-nous	-
002	WPW10131119		Screw, Control Panel   (Replaces: 215506)	35			$ 6.26
003	205810		Wire, Ground	35	Appelez-nous	-
004	WPW10135389		Control Switch Assembly   (Replaces: 206808)	35			$ 125.66
004	W10756178		Screw, Control Switch   (Replaces: 215527)	35			$ 5.39
005	WPW10424308		Pushbutton, Control Switch   (Replaces: 215517)	35		Immediately	$ 18.38
006	22002929		Switch Brkt & Back Brkt (bsq)	35	Appelez-nous	-
007	WP22002921		Switch, Pressure   (Replaces: 22002048)	35			$ 166.10
008	22002010		Hose, Pressure Switch	35			$ 34.16
008	NLA		Clip, Pressure Switch Hose	35	Appelez-nous	-
009	22002889		Console (bsq)	35	Appelez-nous	-
010	WP489128		Screw, Console   (Replaces: 22001996)	35			$ 9.79
011	215003		Fastener, Screw	35	Appelez-nous	-
012	WPW10131839		Transformer   (Replaces: 22001960)	35		Immediately	$ 120.20
013	211251		Screw, Transformer	35	Appelez-nous	-
014	22001419		Nut, Transformer	35	Appelez-nous	-
015	22002328		Board, Control	35	Appelez-nous	-
016	M0282005		Locknut, Control Board   (Replaces: 912077)	35			$ 7.07
017	33001204		Standoff, Circuit Board	35	Appelez-nous	-
018	NLA		Wire Harness, Main----na	35	Appelez-nous	-
019	22001511		Deflector, Water (w/adhesive)	35	Appelez-nous	-
020	WP489399		Screw, Ground Wire   (Replaces: 211252)	35			$ 6.26
021	215526		Screw, Circuit Board	35	Appelez-nous	-
022	W10756178		Screw, Back Bracket   (Replaces: 215527)	35			$ 5.39
023	WPW10131114		Cover, Display   (Replaces: 22001962)	35			$ 42.79

    View Diagram in Separate Window       Print Part List
