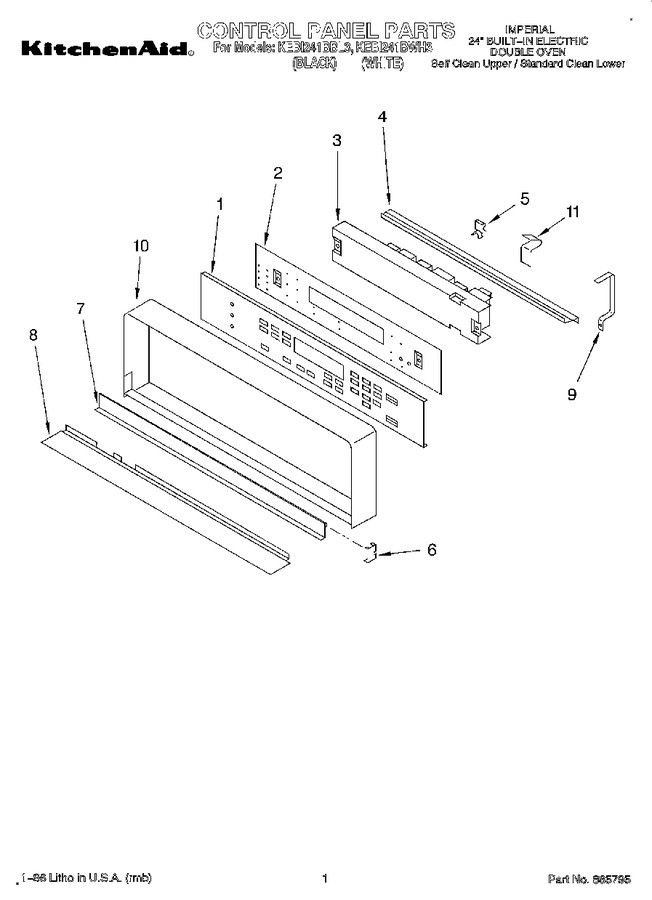

01 - Control Panel


02 - Upper Oven Door


03 - Upper Oven, Literature


04 - Lower Oven


05 - Latch And Vent


06 - Lower Oven Door


07 - Oven Liner


08 - Wiring Harness, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4454353		Membrane, Switch (white Model)		Appelez-nous	-
1	4454352		Membrane, Switch (black Model)		Appelez-nous	-
2	3181889		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181704		Microcomputer		Appelez-nous	-
3	3185648		Screw (2)		Appelez-nous	-
4	3183705		Retainer, Bracket		Appelez-nous	-
4	98520		Screw (2)		Appelez-nous	-
5	3182985		Clip, Retainer (3)		Appelez-nous	-
6	3182162		Trim, Door (2)		Appelez-nous	-
7	3182153		Door, Latch Handle (white Model)		Appelez-nous	-
7	3178001		Door, Latch Handle (screw (2))		Appelez-nous	-
7	3182150		Door, Latch Handle (black Model)		Appelez-nous	-
8	3183701		Trim, Panel		Appelez-nous	-
8	3185647		Screw		Appelez-nous	-
9	98520		Screw (2)		Appelez-nous	-
9	3184321		Bracket (2)		Appelez-nous	-
10	3187951		Frame, Control Panel (black Model)		Appelez-nous	-
10	3187952		Frame, Control Panel (white Model)		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
