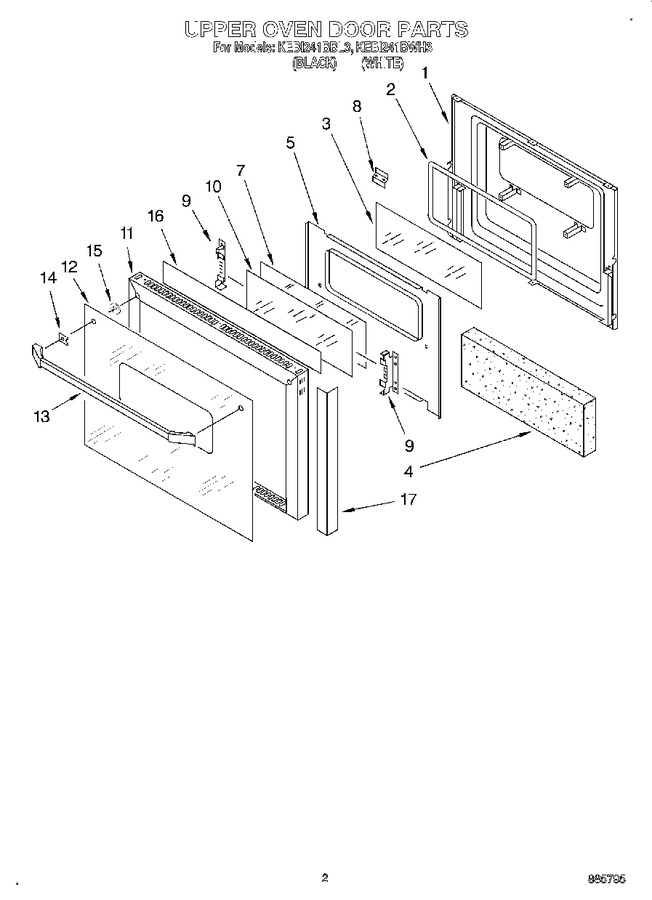

02 - Upper Oven Door


03 - Upper Oven, Literature


04 - Lower Oven


05 - Latch And Vent


06 - Lower Oven Door


07 - Oven Liner


08 - Wiring Harness, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185499		Liner, Door		Appelez-nous	-
1	3178001		Screw		Appelez-nous	-
2	3185462		Seal, Window		Appelez-nous	-
3	3185457		Glass, Clear		Appelez-nous	-
4	3185460		Insulation, Door		Appelez-nous	-
5	4159465		Screw		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
7	3185458		Glass, Reflective		Appelez-nous	-
8	3185438		Latch, Strike		Appelez-nous	-
9	3185439		Retainer, Glass		Appelez-nous	-
9	3185647		Screw		Appelez-nous	-
10	3185459		Glass, Clear		Appelez-nous	-
11	3187853		Frame, Door (white Model)		Appelez-nous	-
11	3187851		Frame, Door (black Model)		Appelez-nous	-
12	3187866		Glass, Door (white Model)		Appelez-nous	-
12	3187864		Glass, Door (black Model)		Appelez-nous	-
13	3185990		Handle, Door (white Model)		Appelez-nous	-
13	3185989		Handle, Door (black Model)		Appelez-nous	-
14	3182138		Spacer, Door Handle		Appelez-nous	-
15	3184037		Screw		Appelez-nous	-
15	3188599		Bushing, Door Handle		Appelez-nous	-
16	3188634		Foil-adhesive		Appelez-nous	-
17	3188635		Foil-adhesive		Appelez-nous	-
