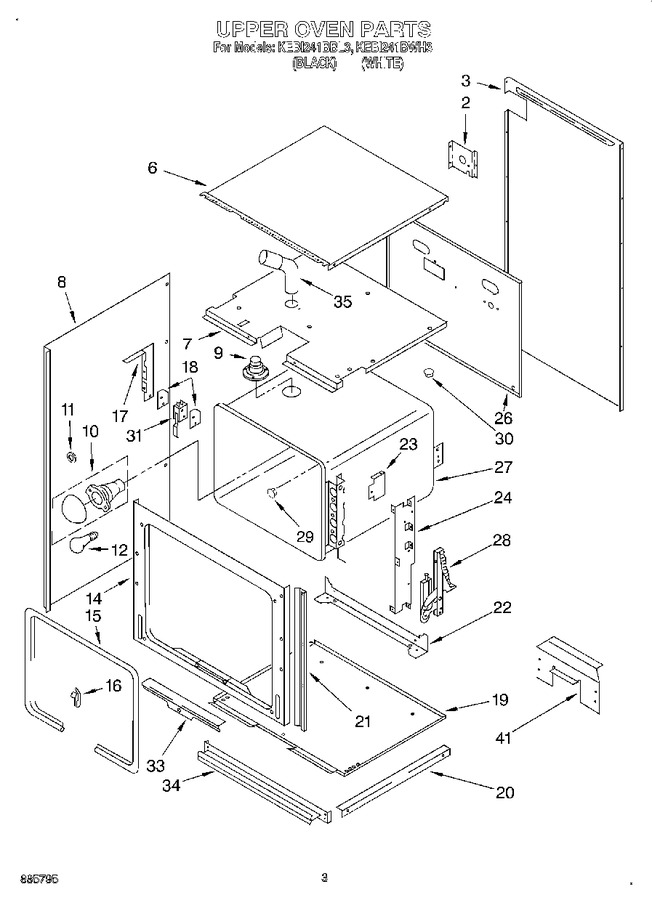

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3185647		Screw		Appelez-nous	-
2	3177545		Bracket, Conduit		Appelez-nous	-
3	3185647		Screw		Appelez-nous	-
3	3177624		Cabinet, Back		Appelez-nous	-
6	3178141		Cabinet, Top		Appelez-nous	-
6	3185647		Screw		Appelez-nous	-
7	3185647		Screw		Appelez-nous	-
7	3183747		Module, Top		Appelez-nous	-
8	3177440		Side, Cabinet (r.h. & L.h.)		Appelez-nous	-
8	3185647		Screw		Appelez-nous	-
9	3185648		Screw (3)		Appelez-nous	-
9	3186684		Tube, Vent		Appelez-nous	-
10	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
11	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
14	4454464		Frame, Front		Appelez-nous	-
15	3179814		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177622		Bottom, Module		Appelez-nous	-
20	3179220		Rail, Support (2)		Appelez-nous	-
20	3185647		Screw		Appelez-nous	-
21	3187878		Side Trim, Door (2) (white Model)		Appelez-nous	-
21	3187875		Trim, Door Side (2) (black Model)		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
22	3185647		Screw		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
23	3185647		Screw		Appelez-nous	-
24	3185647		Screw		Appelez-nous	-
24	3177433		Bracket, Hinge		Appelez-nous	-
24	3179795		Screw (6)		Appelez-nous	-
26	3185647		Screw		Appelez-nous	-
26	3177559		Back, Module		Appelez-nous	-
27	3185561		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
28	3179795		Screw		Appelez-nous	-
29	3182814		Button, Plug		Appelez-nous	-
30	3185085		Button, Plug		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
33	4168863		Screw		Appelez-nous	-
34	3187886		Vent, Middle Trim (white Model)		Appelez-nous	-
34	3188645		Vent, Middle Trim (screw, White (4))		Appelez-nous	-
34	3187884		Vent, Middle Trim (black Model)		Appelez-nous	-
34	3188644		Vent, Middle Trim (screw Black (4))		Appelez-nous	-
35	3183791		Vent, Tube		Appelez-nous	-
41	4454419		Insulation, Wrap		Appelez-nous	-
41	3182584		Support, Control Frame		Appelez-nous	-
	LIT3186938		Tech Sheet		Appelez-nous	-
	LIT3188198		Use & Care Guide		Appelez-nous	-
	LIT3183659		Installation Instructions		Appelez-nous	-
