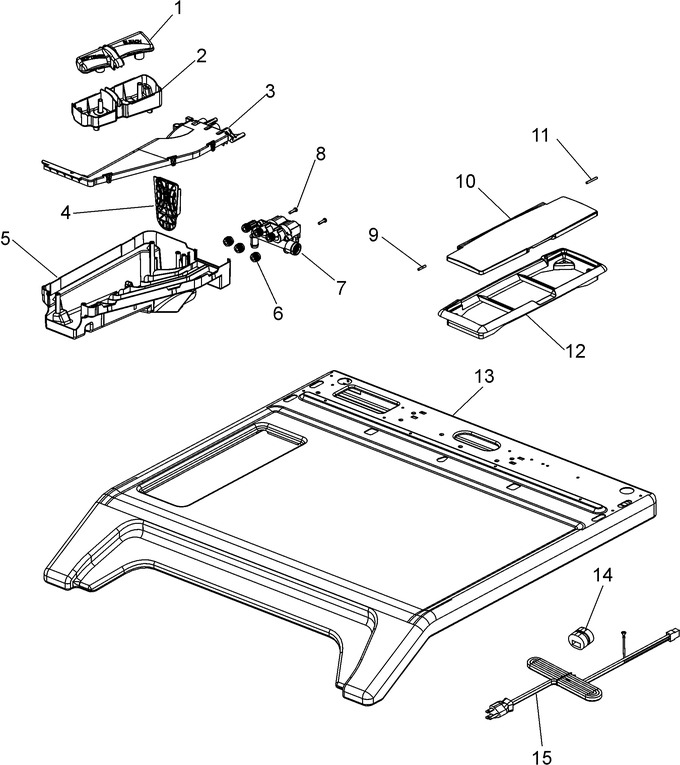

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003849		Siphon Cap	10			$ 38.07
002	22003848		Siphon Cup	10			$ 28.35
003	22003845		Dispenser Cover (flume)	10	Appelez-nous	-
004	22003321		Grid, Dispenser	10	Appelez-nous	-
005	22003844		Dispenser Bottom	10			$ 66.94
006	12001929		Valve Seal   (Replaces: 22003847)	10			$ 6.26
007	12001930		Dispenser Valve   (Replaces: 22003846)	10			$ 178.80
008	22002243		Screw	10	Appelez-nous	-
009	Y912679		Pin, Hinge (short)	10			$ 3.98
010	WP22002941		Lid, Dispenser   (Replaces: 22002941)	10			$ 47.25
011	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
012	WP22003665		Bezel, Dispenser   (Replaces: 22003665)	10			$ 70.45
013	22004180		Cover, Top (wht-as Pk)	10	Appelez-nous	-
014	211881		Grommet, Cord	10	Appelez-nous	-
015	WP22003062		Cord, Power (as Wrapped)   (Replaces: 22003062)	10			$ 121.96
