SELECT A DIAGRAM

01 - Control Panel


02 - Top


03 - Cabinet-front


04 - Cabinet-rear


05 - Outer Tub & Motor


06 - Spinner Assembly & Outer Tub Cover


07 - Base & Motor Control


08 - Door, Shroud, & Front Panel


09 - Wiring Information


10 - Wiring Information Ser-15

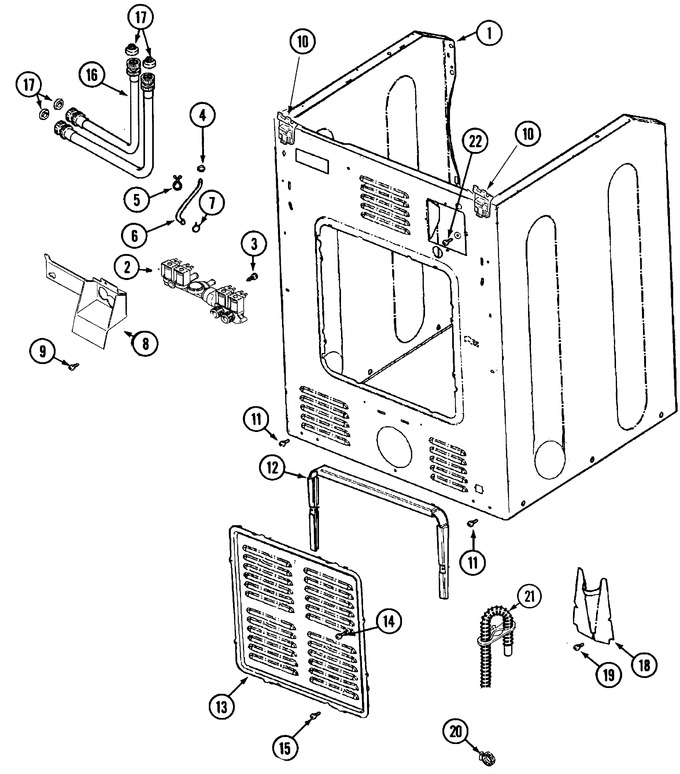

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003639		Cabinet Assy. (wht As Pk)	10	Appelez-nous	-
002	WP22003940		Valve, Water   (Replaces: 22004186)	10			$ 160.91
003	22002436		Screw, Water Valve	10	Appelez-nous	-
004	WP285655		Clamp, Stepless   (Replaces: 22002054)	10		Immediately	$ 7.55
005	22003707		Cable, Tie	10	Appelez-nous	-
006	WP22002083		Hose, Injector   (Replaces: 22002083)	10			$ 124.55
007	WP596669		Clamp,hose-injec.hose To Valve   (Replaces: 216169)	10		Immediately	$ 7.56
008	33002212		Bracket, Water Valve	10	Appelez-nous	-
009	22002436		Screw	10	Appelez-nous	-
010	22004095		Hinge, Plastic	10			$ 20.04
011	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
012	22002022		Spacer, Access Panel	10	Appelez-nous	-
013	22002092		Panel, Access	10	Appelez-nous	-
013	22004355		Rear Access Panel	11	Appelez-nous	-
014	WP67006908		Screw   (Replaces: 22002295)	10		Immediately	$ 7.16
015	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
016	22003682		Inlet Hose Assy (cold)	10	Appelez-nous	-
016	22003683		Inlet Hose Assy (hot)	10	Appelez-nous	-
017	12001413		Strainer & Washer Kit	10			$ 2.75
018	22002704		Cover, Drain Hose	10	Appelez-nous	-
019	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
020	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
021	WP22002892		Retainer, Drain Hose   (Replaces: 22002892)	10			$ 76.85
021	12001807		Hose, Drain (corr)(80 1/2``)   (Replaces: 22003319)	10			$ 49.51
022	NLA		Screw----na	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
