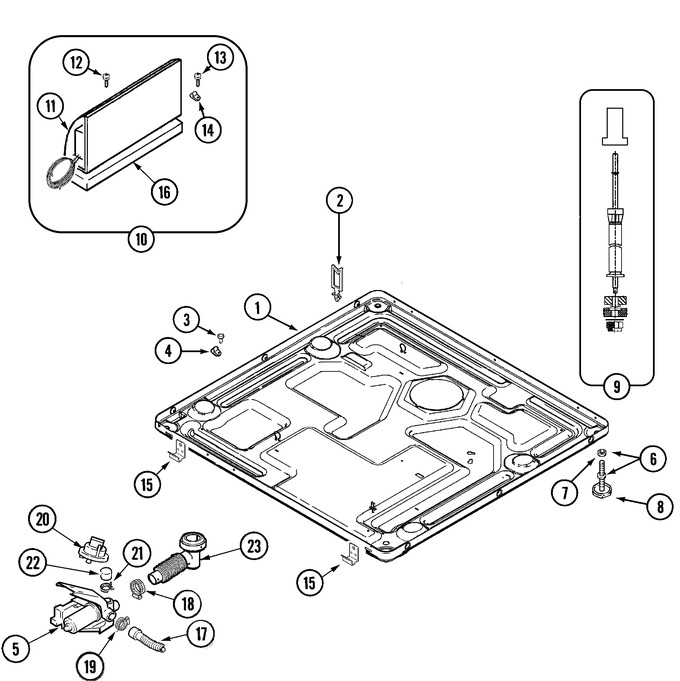

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22003435 | Commercial Base Weld Assy (Replaces: 22003926) | 10 |
|
$ 309.12 | ||||
| 002 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 003 | Y313561 | Screw, Wire Harness Clip | 10 |
|
$ 5.27 | ||||
| 004 | 22003327 | Clip, Wire Harness | 10 |
|
- | ||||
| 005 | WP25001052 | Drain Pump Assembly (Replaces: 22003244) | 10 |
|
Immediately | $ 150.51 | |||
| 006 | WP8563585 | Adjustable Leg W/foot & Nut (Replaces: 22003544) | 10 |
|
Immediately | $ 13.28 | |||
| 007 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 008 | WP210684 | Foot, Rubber (Replaces: 210684) | 10 |
|
Immediately | $ 14.09 | |||
| 009 | 22001988 | Strut Assy-rear | 10 |
|
$ 200.90 | ||||
| 010 | WP22004046 | Control Assy., Motor (Replaces: 22004046) | 10 |
|
$ 376.55 | ||||
| 010 | 22004473 | Motor Control Assembly | 23 |
|
$ 244.89 | ||||
| 011 | 22003614 | Shield, Motor Control Drip | 10 |
|
- | ||||
| 012 | WP90767 | Screw, Motor Control Bracket (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 013 | WP3351614 | Screw, Wire Clip To Mtr Cnt (Replaces: 22002019) | 10 |
|
Immediately | $ 6.26 | |||
| 014 | 22003327 | Clamp, Lcd Harness To Cover | 10 |
|
- | ||||
| 015 | W11573574 | Screw, Lower Frt Panel To Base (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 015 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 016 | 22003548 | Bracket, Mtg. (sr Motor Ctl) | 10 |
|
- | ||||
| 017 | 12001807 | Hose, Drain (corr)(80 1/2``) (Replaces: 22003319) | 10 |
|
$ 49.51 | ||||
| 018 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 10 |
|
Immediately | $ 7.56 | |||
| 018 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 10 |
|
Immediately | $ 7.55 | |||
| 019 | WP696392 | Clamp, Sump Hose (Replaces: 22002053) | 10 |
|
$ 7.31 | ||||
| 020 | 22003728 | Switch, Pressure | 10 |
|
$ 118.47 | ||||
| 021 | WP285655 | Clamp, Hose (Replaces: 22002853) | 10 |
|
Immediately | $ 7.55 | |||
| 022 | 22003268 | Cap, Rubber | 10 |
|
$ 26.61 | ||||
| 023 | 22003262 | Hose, Tub To Pump | 10 |
|
$ 27.27 |
