SELECT A DIAGRAM

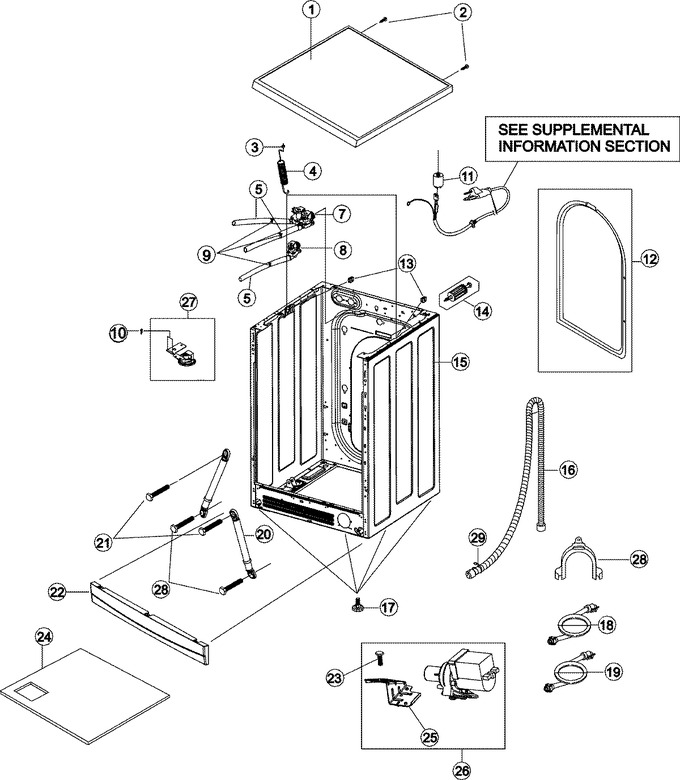

01 - Cabinet


02 - Door - Front Panel


03 - Supplemental Information


04 - Tub


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001128		Assy-cover Top	10	Appelez-nous	-
2	WP489478		Screw-tapping   (Replaces: 34001185)	10			$ 6.98
3	34001150		Sleeve-plug	10	Appelez-nous	-
4	34001137		Spring-hanger	10			$ 31.02
5	34001249		Hose-drawer	10	Appelez-nous	-
6	34001210		Hose-dispenser (.28)	10			$ 53.67
7	WP34001151		Valve-water (cold)   (Replaces: 34001151)	10		Immediately	$ 150.44
8	WP34001131		Valve-water (hot)   (Replaces: 34001131)	10		Immediately	$ 161.34
9	WP596669		Clamp-hose   (Replaces: 34001208)	10		Immediately	$ 7.56
10	6006-001170		Screw-assy Tapp	10			$ 0.85
11	34001203		Emi Filter	10	Appelez-nous	-
12	34001092		Cover-back (access)	10	Appelez-nous	-
13	34001097		Guide-spring - Washer Only	10			$ 18.96
14	34001134		Assy-fixer Tub	10			$ 36.56
15	34001129		Assy-frame (cabinet)-washer Lu	10	Appelez-nous	-
16	34001095		Assy-hose Drain	10			$ 83.92
17	34001096		Assy-leg	10			$ 23.64
18	34001089		Assy-hose Water (hot)	10			$ 41.43
19	34001094		Assy-hose Water (cold)	10			$ 110.34
20	34001132		Damper-shock	10	Appelez-nous	-
20	34001447		Damper	13			$ 54.13
21	34001148		Bolt-hex	10			$ 14.23
22	35001007		Cover-front (l)	10	Appelez-nous	-
23	34001147		Bolt/screw-pump Bracket	10			$ 40.75
24	34001198		Shutter	10	Appelez-nous	-
25	34001199		Bracket-pump	10	Appelez-nous	-
26	WP34001098		Assy-pump Drain   (Replaces: 34001098)	10		Immediately	$ 145.54
27	34001209		Assy-sensor/pressure Switch	10			$ 79.53
28	34001336		Hose-hanger	10	Appelez-nous	-
29	WP596669		Band Ring, Retainer   (Replaces: 34001224)	10		Immediately	$ 7.56
