01 - Cabinet

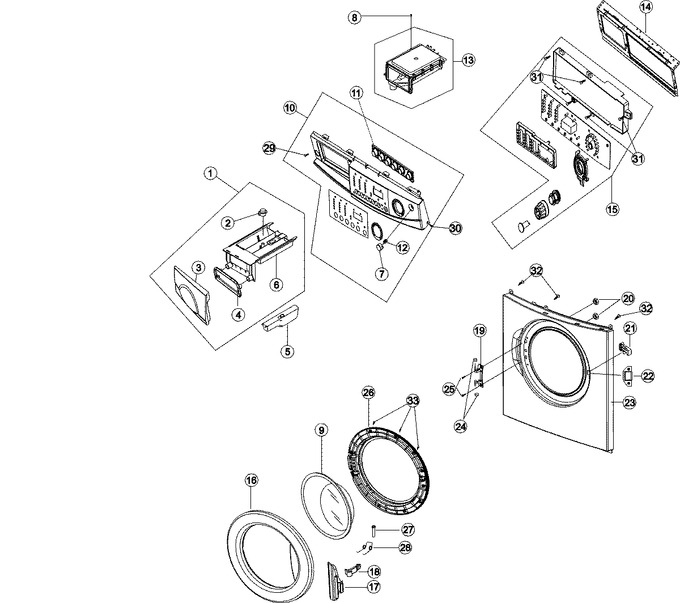

02 - Door - Front Panel


03 - Supplemental Information


04 - Tub


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001197		Assy., Dispenser Drawer	10			$ 63.68
2	34001087		Cap-rinse	10			$ 6.33
3	34001141		Panel-drawer	10			$ 31.25
4	34001190		Handle-drawer	10	Appelez-nous	-
5	34001278		Cup, Bleach	10			$ 9.31
5	34001191		Assy-cover Drawer	11	Appelez-nous	-
6	34001103		Body-drawer	10	Appelez-nous	-
7	35001053		Button-push (p)	10	Appelez-nous	-
8	6002-000213		Screw-tapping	10		Immediately	$ 0.93
9	34001106		Door-glass	10	Appelez-nous	-
10	34001086		Assy-panel Control	10	Appelez-nous	-
11	35001069		Button-push (f)	10			$ 19.43
12	35001068		Spring Etc-button	10	Appelez-nous	-
13	34001102		Assy-housing Drawer	10			$ 67.63
14	34001100		Assy-frame Plate	10	Appelez-nous	-
15	12002651		Control Board Assembly (24``hh)	12			$ 276.53
15	12002616		Control Board Assy (24``hh)	11	Appelez-nous	-
15	34001176		Assy Pcb Parts	10	Appelez-nous	-
16	WP34001178		Cover-door   (Replaces: 34001178)	10			$ 292.86
17	34001196		Handle-door	10			$ 5.84
18	34001111		Lever-door	10			$ 29.27
19	34001215		Hinge-door	10			$ 200.79
20	34001144		Nut-flange	10	Appelez-nous	-
21	WP34001011		Door-lock S/w   (Replaces: 34001011)	10			$ 253.18
22	34001051		Cover-front (door)	10	Appelez-nous	-
23	34001145		Assy-frame Front Lu	10	Appelez-nous	-
24	WP34001192		Guide-hinge   (Replaces: 34001192)	10		Immediately	$ 6.47
25	34001193		Screw-tapping	10	Appelez-nous	-
26	34001179		Holder-glass	10			$ 89.42
27	34001194		Guide-bar	10			$ 5.70
28	34001195		Spring-handle	10			$ 5.70
29	34001214		Screw-console To Front Frame	10	Appelez-nous	-
30	34001213		Screw-painted, Side Panel	10	Appelez-nous	-
31	6002-000213		Screw-tapping	10		Immediately	$ 0.93
32	34001211		Screw-pump Bracket	10	Appelez-nous	-
33	34001193		Screw-tapping	10	Appelez-nous	-
