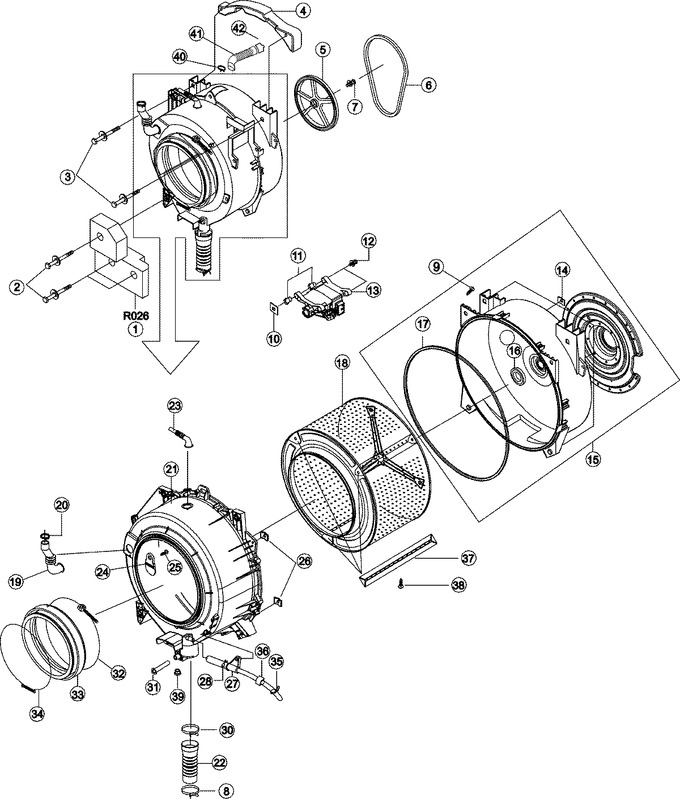

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 34001156 | Weight-balance (l) | 10 |
|
- | ||||
| 2 | 34001158 | Assy-bolt | 10 |
|
$ 49.95 | ||||
| 3 | 34001159 | Seal-oil | 10 |
|
- | ||||
| 4 | 34001160 | Weight-balancer (u) | 10 |
|
- | ||||
| 5 | 34001124 | Pulley - Washer | 10 |
|
$ 78.74 | ||||
| 6 | 34001117 | Belt | 10 |
|
$ 64.83 | ||||
| 7 | 34001205 | Assy-bolt | 10 |
|
$ 29.02 | ||||
| 8 | 34001165 | Clamp-hose | 10 |
|
- | ||||
| 9 | 34001212 | Screw-outer Tub Front To Back | 10 |
|
- | ||||
| 10 | 34001163 | Bracket-nut | 10 |
|
- | ||||
| 11 | 34001157 | Bushing-motor | 10 |
|
$ 13.35 | ||||
| 12 | 34001158 | Assy-bolt | 10 |
|
$ 49.95 | ||||
| 13 | 34001122 | Motor-drum | 10 |
|
$ 301.23 | ||||
| 14 | 34001168 | Bracket-nut | 10 |
|
- | ||||
| 15 | 12002538 | Assy-tub Back (Replaces: 34001115) | 10 |
|
$ 287.60 | ||||
| 16 | 34001159 | Seal-oil | 10 |
|
- | ||||
| 17 | 34001123 | Packing-tub | 10 |
|
$ 27.92 | ||||
| 18 | 34001175 | Assy-drum | 10 |
|
- | ||||
| 19 | 34001120 | Hose-drawer Tub | 10 |
|
$ 28.84 | ||||
| 20 | WP596669 | Clip-hose (Replaces: 34001161) | 10 |
|
Immediately | $ 7.56 | |||
| 21 | 34001174 | Tub-front | 10 |
|
- | ||||
| 22 | 34001121 | Hose-filter Tub | 10 |
|
$ 23.59 | ||||
| 23 | 34001119 | Hose-air | 10 |
|
- | ||||
| 24 | 34001127 | Vane-check | 10 |
|
- | ||||
| 25 | 34001162 | Packing-thermistor-grommet | 10 |
|
- | ||||
| 26 | 34001168 | Bracket-nut | 10 |
|
- | ||||
| 27 | 34001091 | Assy-hose Pressure | 10 |
|
$ 30.06 | ||||
| 28 | WP596669 | Clamp-hose (Replaces: 34001207) | 10 |
|
Immediately | $ 7.56 | |||
| 29 | 34001121 | Hose-filter Tub | 10 |
|
$ 23.59 | ||||
| 30 | 34001165 | Clamp-hose | 10 |
|
- | ||||
| 31 | 34001202 | Thermistor | 10 |
|
$ 41.79 | ||||
| 32 | 34001113 | Assy-clamp Diaphgram | 10 |
|
$ 23.59 | ||||
| 33 | 34001118 | Door-diaphgram (boot) | 10 |
|
- | ||||
| 34 | 34001116 | Assy-wire Diaphgram | 10 |
|
$ 17.42 | ||||
| 35 | DC61-70029C | Spring-clamp (Replaces: 34001169) | 10 |
|
$ 0.85 | ||||
| 36 | 34001170 | Sponge-hose Air | 10 |
|
- | ||||
| 37 | 34001171 | Drum-lifter (baffle) | 10 |
|
- | ||||
| 38 | 6002-000471 | Screw-baffle (Replaces: 34001219) | 10 |
|
$ 0.85 | ||||
| 39 | 34001162 | Packing-thermistor-grommet | 10 |
|
- | ||||
| 40 | W10239910 | Band-ring (Replaces: 34001225) | 10 |
|
$ 53.49 | ||||
| 41 | 34001226 | Hose-o.f. | 10 |
|
- | ||||
| 42 | 34001227 | Cap-o.f. | 10 |
|
- |
