SELECT A DIAGRAM

01 - Base, Motor & Motor Control


02 - Cabinet-front


03 - Cabinet-rear


04 - Control Panel & Top


05 - Door & Front Panel


06 - Door Shroud & Door Latch Assembly


07 - Outer Tub


08 - Spinner Assembly & Outer Tub Cover


09 - Supplemental Information


10 - Wiring Harness


12 - Wiring Information

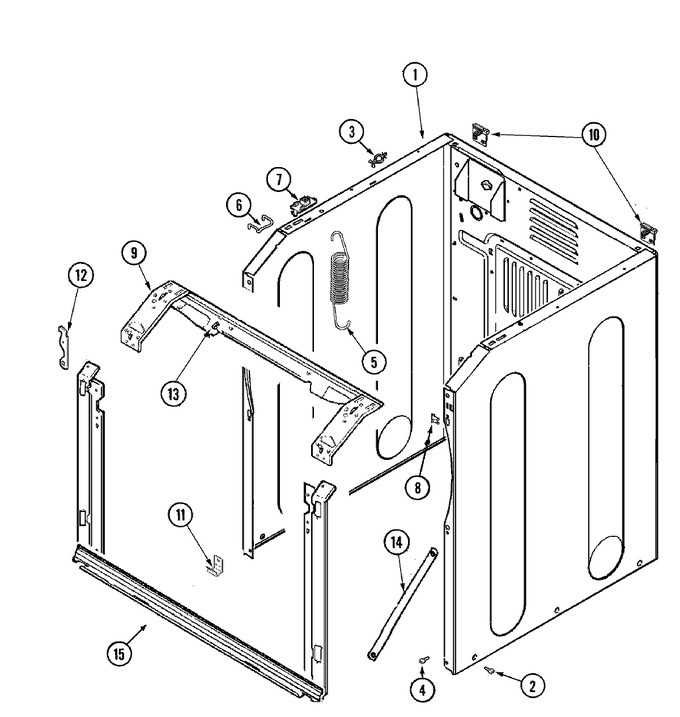

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003639		Cabinet Assy. (wht As Pk)	10	Appelez-nous	-
2	213007		Screw, Cabinet	10			$ 10.99
2	22002013		Stop, Shipping	10			$ 5.43
3	22003298		Retainer, Wire	10			$ 7.71
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
5	WP22003254		Spring, Cabinet   (Replaces: 22003254)	10			$ 7.16
6	22002297		Support, Spring	10			$ 5.84
7	22001997		Spacer, Top Cover	10	Appelez-nous	-
8	22002049		Clip	10			$ 8.40
9	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
9	22003637		Brace Assembly, Top Cross	69	Appelez-nous	-
10	22003367		Hinge, Plastic	10	Appelez-nous	-
10	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
11	22002239		Clip, Lower Front Panel	10			$ 5.84
12	33002597		Hook, Security	10			$ 28.59
12	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
13	WP308605		Clip   (Replaces: 22002014)	10			$ 10.08
14	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
14	22002259		Brace, Cross	10	Appelez-nous	-
15	22003652		Shroud Support Assembly	69	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
