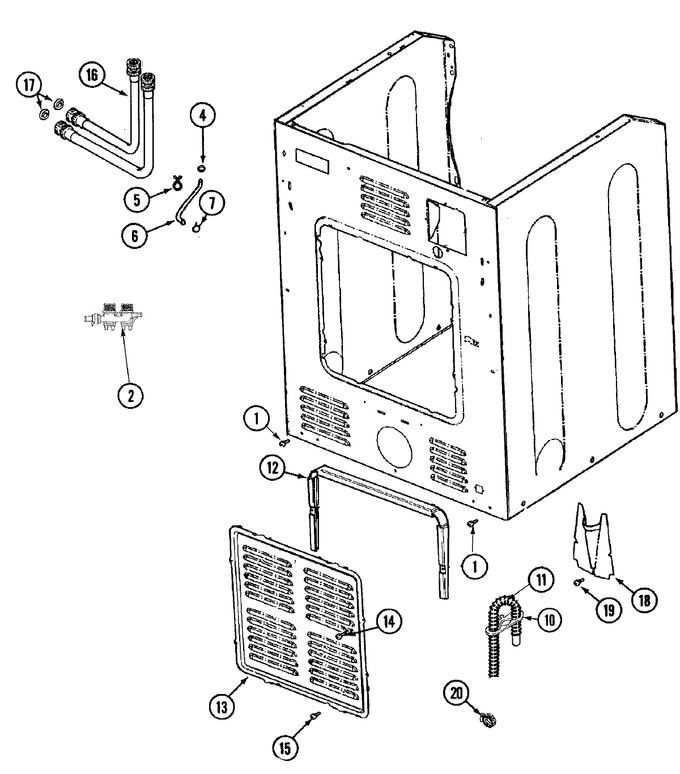

MAH6500AWW | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	W11573574	Screw (Replaces: 22001995)	10		Immediately	$ 12.62
2	WP22003834	Water Valve W` Thermistor (Replaces: 22003834)	10		Immediately	$ 136.93
2	WP489503	Clamp - 15/16`` (Replaces: 205161)	10		Immediately	$ 9.68
3	22002436	Screw	10	Appelez-nous	-
4	WP285655	Clamp, Stepless (Replaces: 22002054)	10		Immediately	$ 7.55
5	WP74007164	Wire Tie, Twist Lock (Replaces: 22002027)	10			$ 6.85
6	WP22002083	Hose, Injector (Replaces: 22002083)	10			$ 124.55
6	35-2890	Cable Tie	10	Appelez-nous	-
7	WP596669	Clamp,hose-injec.hose To Valve (Replaces: 216169)	10		Immediately	$ 7.56
8	33002212	Bracket, Water Valve	10	Appelez-nous	-
8	W11772394	Screw (Replaces: 22003263)	10		Immediately	$ 10.94
9	WP489128	Screw (Replaces: 22002925)	10			$ 9.79
10	WP22002892	Retainer, Drain Hose (Replaces: 22002892)	10			$ 76.85
11	35-2890	Cable Tie	10	Appelez-nous	-
11	12001807	Hose, Drain (corr)(80 1/2``) (Replaces: 22003319)	10			$ 49.51
11	22002932	Clip, Drain Hose	10	Appelez-nous	-
12	22002022	Spacer, Access Panel	10	Appelez-nous	-
12	W10124350	Not Required Part Or See Note	11	Appelez-nous	-
13	22004355	Rear Access Panel	11	Appelez-nous	-
13	22002092	Panel, Access	10	Appelez-nous	-
14	WP489128	Screw (Replaces: 22002925)	11			$ 9.79
14	WP67006908	Screw (Replaces: 22002295)	10		Immediately	$ 7.16
15	WP489128	Screw (Replaces: 22002925)	10			$ 9.79
16	WP89503	Hose, 4` Inlet (Replaces: 33-7891)	10		Immediately	$ 21.68
16	W11629055	Hose, Inlet (Replaces: 35-0874)	10			$ 24.93
17	Y013783	Gasket, Inlet Hose	10			$ 18.72
18	22002704	Cover, Drain Hose	10	Appelez-nous	-
19	W11573574	Screw (Replaces: 22001995)	10		Immediately	$ 12.62
20	WP285655	Clamp, Drain Hose (Replaces: 22001984)	10		Immediately	$ 7.55
