MAH6500AWW | TransGlobal : Appliance Model Lookup

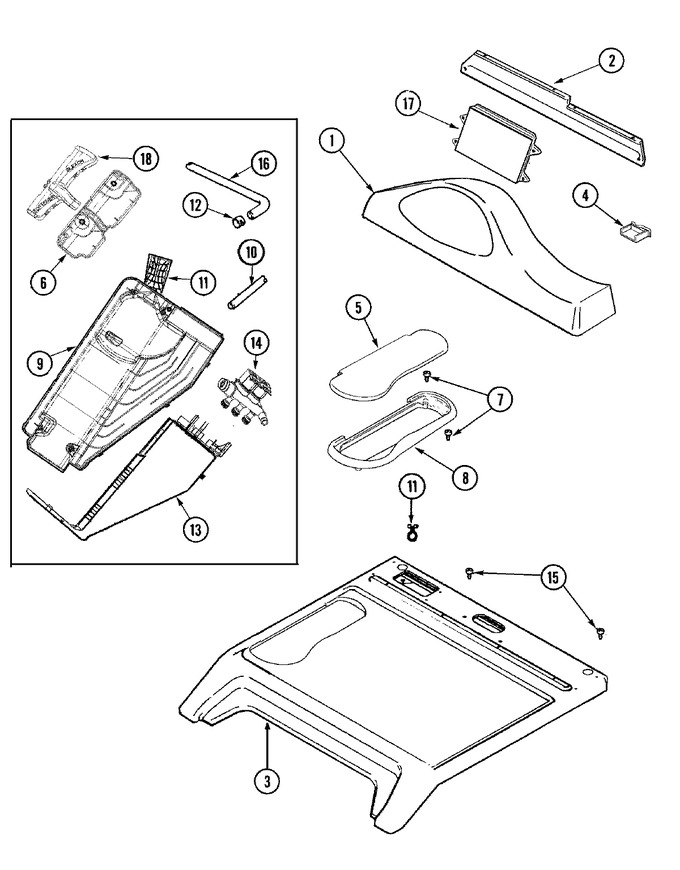

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	22003806	Medallion, Console (wht)	10	Appelez-nous	-
1	22004440	Led Console Assy-wht - As Pack	37			$ 229.90
1	22003807	Medallion, Console (bsq)	10	Appelez-nous	-
1	22003910	Console W/membrane Switch-wht	10			$ 235.96
2	22002061	Screw	10	Appelez-nous	-
2	Y22002339	Screw	10	Appelez-nous	-
2	22003581	Back, Console Panel	10	Appelez-nous	-
3	22004180	Cover, Top (wht-as Pk)	10	Appelez-nous	-
4	22003276	Cover, Console Plug (wht)	10	Appelez-nous	-
5	22003274	Lid, Dispenser (wht)	10	Appelez-nous	-
6	22003848	Siphon Cup	10			$ 28.35
7	W11772394	Screw, Dispenser Lid (Replaces: 22003681)	10		Immediately	$ 10.94
8	22003273	Bezel, Dispenser (wht)	10			$ 35.00
9	WP596669	Hose Clamp - 1-1/16 Inch (Replaces: 202515)	10		Immediately	$ 7.56
9	22003844	Dispenser Bottom	10			$ 66.94
10	22003832	Fill Hose, Dispenser	10			$ 48.05
11	22003321	Grid, Dispenser	10	Appelez-nous	-
12	WP285655	Clamp, Drain Hose (Replaces: 22001984)	10		Immediately	$ 7.55
12	WP285655	Clamp, Hose (Replaces: 22001640)	10		Immediately	$ 7.55
12	22003833	Hose, Tub Shower	10			$ 69.09
12	WP489503	Clamp - 15/16`` (Replaces: 205161)	10		Immediately	$ 9.68
12	22003832	Fill Hose, Dispenser	10			$ 48.05
13	22003845	Dispenser Cover (flume)	10	Appelez-nous	-
14	12001930	Dispenser Valve (Replaces: 22003846)	10			$ 178.80
14	12001930	Dispenser Valve Asy Kit	10			$ 178.80
15	WP489128	Screw (Replaces: 912365)	10			$ 9.79
16	22002551	Hose, Bleach	10	Appelez-nous	-
17	22004257	Control Board Led As Pk	24			$ 265.39
17	22004447	Control Board, As Packed Sub	35	Appelez-nous	-
17	22004447	Control Board, As Packed Sub	37	Appelez-nous	-
17	22003927	Control Board (as Pack)	10	Appelez-nous	-
18	22003849	Siphon Cap	10			$ 38.07
19	22004082	Seal Insertion Tool	10			$ 3.15
