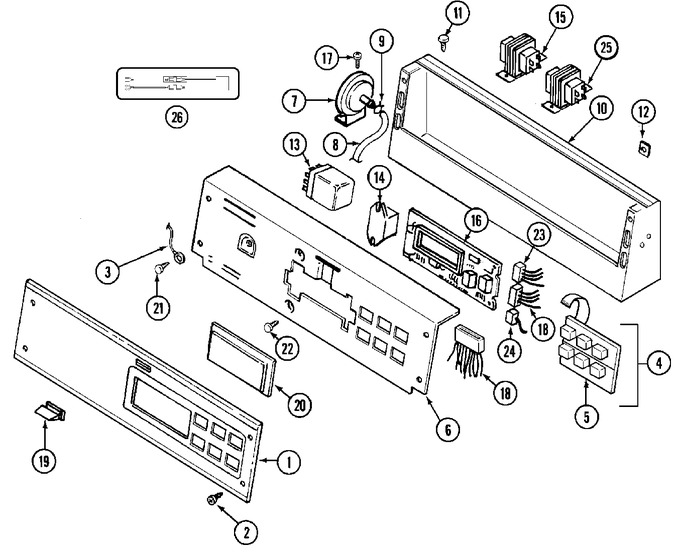

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
07 - Clutch, Brake & Belts
08 - Control Center
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Panel, Control | A0 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | A0 |
|
$ 6.26 | ||||
| 003 | 204807 | Wire, Ground | A0 |
|
- | ||||
| 003 | NLA | Wire, Ground | 14 |
|
- | ||||
| 004 | W10756178 | Screw, Switch (Replaces: 215527) | A0 |
|
$ 5.39 | ||||
| 004 | WPW10135389 | Control Switch Assembly (Replaces: 206808) | A0 |
|
$ 125.66 | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | A0 |
|
Immediately | $ 18.38 | |||
| 006 | 215516 | Plate, Back-up (wht) | A0 |
|
- | ||||
| 006 | NLA | (alm) | A0 |
|
- | ||||
| 007 | WP22001308 | Switch, Water Level (Replaces: 22001308) | A0 |
|
Immediately | $ 191.68 | |||
| 008 | WP22001619 | Tube, Water Level Switch (Replaces: 212942) | A0 |
|
$ 75.73 | ||||
| 009 | WP596669 | Clamp, Water Level Tube (Replaces: 410296) | A0 |
|
Immediately | $ 7.56 | |||
| 010 | 206780 | Console (wht) | A0 |
|
- | ||||
| 010 | 206780L | (alm) | A0 |
|
- | ||||
| 011 | WP90767 | Screw, Console (Replaces: 212276) | A0 |
|
Immediately | $ 7.04 | |||
| 012 | 215003 | Clip, Screw | A0 |
|
- | ||||
| 013 | 206421 | Relay, Reversing (dpdt) | A0 |
|
- | ||||
| 013 | 212949 | Screw, Relay | A0 |
|
- | ||||
| 013 | 22001418 | Plate, Relay | A0 |
|
- | ||||
| 014 | 206824 | Relay, Motor (spst) | A0 |
|
- | ||||
| 014 | 212949 | Screw, Relay | A0 |
|
- | ||||
| 015 | WP90767 | Screw, Transformer (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 015 | 207766 | Transformer (step Down) | A0 |
|
- | ||||
| 016 | 207767 | Shield, Control | A0 |
|
- | ||||
| 016 | 33001249 | Battery | A0 |
|
- | ||||
| 016 | M0282005 | Locknut, Control Board (Replaces: 912077) | A0 |
|
$ 7.07 | ||||
| 016 | Y215513 | Spacer, Control Board | A0 |
|
- | ||||
| 016 | NLA | Support, Battery | A0 |
|
- | ||||
| 017 | WP90767 | Screw, Water Level Switch (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 018 | NLA | Wire Harness, Main----na | A0 |
|
- | ||||
| 018 | Y312953 | Terminal, Edgeboard | A0 |
|
- | ||||
| 018 | 314531 | Connector, Edgeboard | A0 |
|
- | ||||
| 019 | 214610 | Bumper, Lid | A0 |
|
- | ||||
| 020 | 33001208 | Cover, Display | A0 |
|
- | ||||
| 021 | WP489128 | Screw, Ground Wire (Replaces: 210186) | A0 |
|
$ 9.79 | ||||
| 022 | 215526 | Screw, Control Board | A0 |
|
- | ||||
| 023 | NLA | Connector, Edgeboard----na | A0 |
|
- | ||||
| 023 | 206799 | Optic Switch Assembly | A0 |
|
$ 113.64 | ||||
| 024 | 22001361 | Connector, Edgeboard | A0 |
|
- | ||||
| 024 | 208045 | Harness, Wire (sensor Sw`s.) | A0 |
|
- | ||||
| 025 | 211251 | Screw | A0 |
|
- | ||||
| 025 | 22001417 | Transformer, Step Down | A0 |
|
- | ||||
| 025 | 22001419 | Nut (elastic) | A0 |
|
- | ||||
| 026 | NLA | Surge Suppressor Kit | 14 |
|
- |
