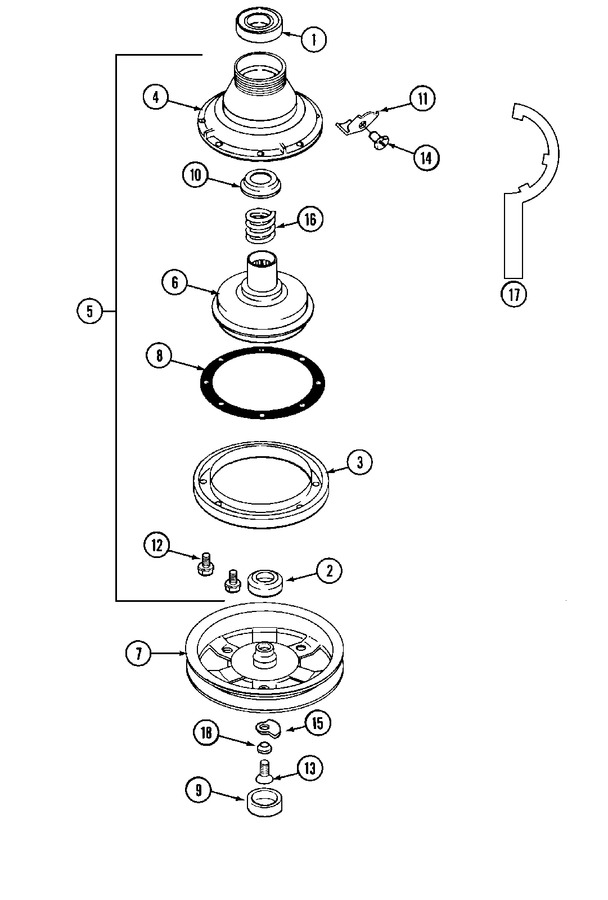

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y200720		Ball Bearing, Radial----s	A0	Appelez-nous	-
002	200835		Bearing, Brake Rotor	A0			$ 30.47
003	211043		Drum, Brake	A0	Appelez-nous	-
004	211045		Housing, Brake	A0	Appelez-nous	-
005	201190		Package, Brake	A0	Appelez-nous	-
006	201126		Rotor, Brake (w/facing)	A0	Appelez-nous	-
007	WP6-2301530		Pulley, Drive   (Replaces: 211059)	A0			$ 178.73
008	211042		Gasket, Brake Drum	A0	Appelez-nous	-
009	NLA		Cap, Oil Retainer	A0	Appelez-nous	-
010	211039		Retainer, Brake Spring	A0	Appelez-nous	-
011	213325		Clip, Retainer	A0			$ 5.51
012	WP8281227		Screw, Brake Drum (hex Hd)   (Replaces: 211000)	A0			$ 9.40
013	WP912618		Screw, Drive Lug   (Replaces: 211375)	A0			$ 6.98
014	213326		Bolt, Retaining Clip	A0	Appelez-nous	-
015	WP211089		Lug, Stop   (Replaces: 211089)	A0			$ 10.16
016	211041		Spring, Brake	A0	Appelez-nous	-
017	Y038315		Tool, Brake Package Assembly	A0	Appelez-nous	-
018	WP22003555		Washer, Lock (drive Lug)   (Replaces: 211090)	A0			$ 19.26
