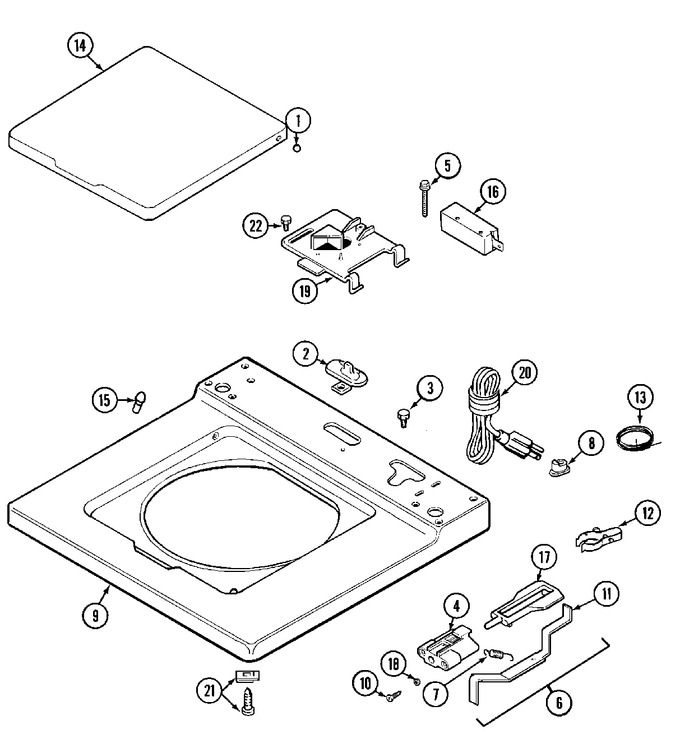

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP211726		Hinge, Ball   (Replaces: 211726)	A0		Immediately	$ 7.18
002	W11233072		Screw, Cap   (Replaces: 207159)	A0		Immediately	$ 12.62
002	22001298		Cap, Top Cover	A0	Appelez-nous	-
003	WP489128		Screw, Ground Wire   (Replaces: 210186)	A0			$ 9.79
004	NLA		Bracket, Plunger	A0	Appelez-nous	-
005	213501		Screw, Lid Switch	A0			$ 12.03
006	22001311		Unbalance Lever Assembly	A0			$ 28.77
007	WP213720		Spring   (Replaces: 213720)	A0			$ 7.63
008	211881		Grommet, Cord	A0	Appelez-nous	-
008	216183		(export)	A0	Appelez-nous	-
009	22001310		(wht)	A0	Appelez-nous	-
009	NLA		Top (alm)	A0	Appelez-nous	-
010	W10756178		Screw, Plunger Bracket   (Replaces: 910182)	A0			$ 5.39
011	22001136		Lever, Unbalance	A0	Appelez-nous	-
012	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
013	204807		Ground Wire, Support Plate	A0	Appelez-nous	-
014	22001341		Lid W/legend (wht)	A0	Appelez-nous	-
014	22001342		(w/legend-alm)	A0	Appelez-nous	-
015	WP212716		Bumper, Lid   (Replaces: 212716)	A0		Immediately	$ 7.88
016	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)	A0		Immediately	$ 27.45
016	22001362		Switch, Lid	A0	Appelez-nous	-
017	216255		Plunger, Lid Switch	A0			$ 5.84
018	211500		Washer, Bracket	A0	Appelez-nous	-
019	22001678		Bracket,switch & Fuse   (Replaces: Y215699)	A0			$ 28.61
020	22001351		Cord, Power	A0	Appelez-nous	-
020	NLA		Cord, Power	A0	Appelez-nous	-
021	204445		Screw & Fastener Assembly	A0	Appelez-nous	-
022	W11233072		Screw, Bracket   (Replaces: 207159)	A0		Immediately	$ 12.62
